I. Introduction: Why China Is a Global Hub for Injection Molding



China has become one of the most powerful and reliable manufacturing hubs for custom plastic injection molding, offering an unmatched combination of cost efficiency, technical capability, and supply-chain maturity. Over the past two decades, the country has invested heavily in mold-making infrastructure, precision machining equipment, and large-scale injection molding facilities, enabling manufacturers to support everything from rapid prototyping to high-volume mass production under one roof.

For overseas companies, China stands out not only because of competitive pricing, but because factories are able to integrate mold design, tool fabrication, resin sourcing, injection molding, secondary processing, assembly, and packaging into a single streamlined workflow. This ecosystem reduces lead times, ensures consistency, and supports the production of highly customized parts across industries such as consumer electronics, medical devices, automotive components, home appliances, and industrial equipment.

However, not all suppliers deliver the same level of professionalism or technical depth, and selecting the right partner requires careful evaluation. With thousands of molding companies operating at different scales and specialization levels, the decision can significantly affect product performance, long-term costs, mold lifespan, and project reliability. This article guides you through the essential steps to identify a trustworthy injection molding manufacturer in China, helping you navigate the sourcing process and avoid common pitfalls.



II. How to Clearly Define Your Requirements Before Sourcing a Supplier



A successful injection molding project starts long before you contact factories. Clearly defining your technical and commercial requirements ensures accurate quotes, stable production, and fewer unexpected costs.

1. Specify the Part Design and Performance Requirements

Your design and functional expectations determine the mold type, material, cycle time, and cost.

• Provide 3D CAD (STEP/IGS) + 2D drawings with tolerances
• Define cosmetic surfaces (A-class glossy, textured, matte, etc.)
• Identify functional areas: snap-fits, threads, inserts, load-bearing zones
  Precise design data prevents misinterpretation and dramatically improves quotation accuracy.

2. Identify Resin and Material Properties Needed

Choosing the right plastic affects durability, appearance, and moldability.

• Mechanical needs: impact strength, stiffness, flexibility
• Environmental needs: UV resistance, temperature, chemicals
• Certification needs: FDA, UL94, RoHS, REACH
  Clarifying material requirements helps suppliers judge feasibility and recommend alternatives.

3. Define Your Project Volumes and Production Schedule

Different volumes require different mold classes and production strategies.

• Prototype stage: soft steel or aluminum molds
• Low/mid volume: 1–5 cavity molds
• High volume: hardened steel multi-cavity, hot runner systems
• Production timeline: target SOP date, ramp-up schedule
  Your volume plan directly influences mold lifetime and total cost.

4. Set Your Tolerance Requirements and Critical Dimensions

Injection molding tolerances vary based on geometry, resin, and shrinkage.

• Indicate critical-to-function (CTF) dimensions
• Highlight areas requiring tight tolerances (±0.02–0.05 mm)
• Identify GD&T requirements: flatness, concentricity, true position
  Clear tolerance expectations ensure the factory plans appropriate tooling precision.

5. Define Cosmetic Expectations and Gate/Parting-Line Limitations

Cosmetic requirements must be known upfront to avoid rework and disputes.

• Acceptable/inacceptable visible gate types
• Limits on weld lines, flow marks, ejector pin locations
• Texture codes (VDI, Mold-Tech, SPI finishes)
  Documenting cosmetic rules allows factories to design the mold with realistic expectations.

6. Clarify Secondary Processes and Assembly Needs

Many molded parts require post-processing to meet final product requirements.

• Ultrasonic welding, insert installation, pad printing, laser engraving
• Sub-assemblies or multi-part fitting checks
• Packaging requirements for fragile or cosmetic components
  Specifying post-processing upfront helps factories quote complete and predictable pricing.

7. Prepare a Complete RFQ Package

A well-prepared RFQ avoids back-and-forth emails and ensures consistent quotes.

• Include drawings, CAD data, quantities, material, and quality expectations
• Add reference photos or prototypes if available
• State shipping terms, payment method, and intended use
  A complete RFQ package results in faster responses and more accurate mold/part quotations.

III. How to Evaluate Technical Capabilities of a China Injection Molding Supplier



When sourcing an injection molding manufacturer in China, one of the most important steps is to verify the supplier’s core technical capabilities. The right factory should not only have the machines to run your parts, but also the engineering depth, mold-making expertise, and process-control systems to ensure long-term product quality and repeatability.

Start by reviewing their equipment list, paying close attention to machine brands, tonnage range, and automation capability. A mature Chinese injection molding supplier typically operates machines from 50T to 1000T or even higher, covering small precision components to large structural parts. Look for facilities equipped with reputable brands such as Haitian, Fanuc, Sumitomo, Engel, or Arburg, as these indicate stability, precision, and good maintenance practices. Check whether they can support special processes like 2K molding, overmolding, LSR injection molding, or insert molding, if required by your project.

Equally important is the supplier’s in-house mold-making capability. The best Chinese manufacturers integrate mold design, mold fabrication, and mold maintenance under one roof, enabling faster turnaround and tighter quality control. Confirm whether the mold shop uses CNC machining centers, EDM, wire-cutting machines, and high-precision measurement tools like CMMs. Ask the factory to share examples of past molds for similar complexity levels—this can reveal their experience with thin-wall structures, complex geometries, tight tolerances, or multi-cavity tools.

Next, assess their process engineering expertise. Reliable suppliers maintain documented parameters for temperature, pressure, cooling, and cycle times for each mold. They should follow best practices such as mold-flow analysis, scientific molding principles, and controlled first article inspections (FAI). When possible, request process data or sample inspection reports for reference.

Finally, consider the strength of their DFM engineering support. The most capable Chinese injection molding manufacturers proactively suggest improvements to wall thickness, draft angles, gate positions, ejector layouts, and assembly interfaces. A supplier that can identify manufacturability risks early will save you time, cost, and potential redesigns.

By carefully evaluating technical expertise—not just quoting speed or prices—you significantly increase your chances of partnering with a factory that delivers consistent quality and long-term reliability.

IV. Mold Design & Engineering Expertise: What to Look for in a Chinese Manufacturer



The quality of your mold determines the quality of every part it produces. Evaluating a factory’s mold design and engineering capabilities is one of the most important steps in selecting a reliable Chinese injection molding partner.

1. Ability to Perform Professional DFM and Product Feasibility Analysis

A strong engineering team should identify manufacturing issues before tooling begins.

• Draft angle confirmation and wall-thickness balancing
• Identification of sink marks, weld lines, and warpage risks
• Ejector layout, gate type, and parting-line recommendations
• Proposals to improve manufacturability and reduce tooling cost
  Thorough DFM analysis is the foundation of a smooth and predictable tooling process.

2. Competence in Mold Structure Design and Complexity Handling

High-quality mold design improves performance, lifespan, and stability.

• Proper cooling channel design for consistent shrinkage
• Structural support for thin walls, ribs, and tight corners
• Slider/ lifter systems for undercuts
• Hot runner vs. cold runner recommendations based on your volume
  A well-designed mold minimizes defects and shortens cycle time.

3. Experience with Advanced Mold Types and Specialized Applications

Not all molds are equal; complex parts require specialized engineering.

• Multi-cavity molds for high-volume production
• Two-shot molds, overmold molds, or insert-molding setups
• High-gloss molds for Class-A consumer surfaces

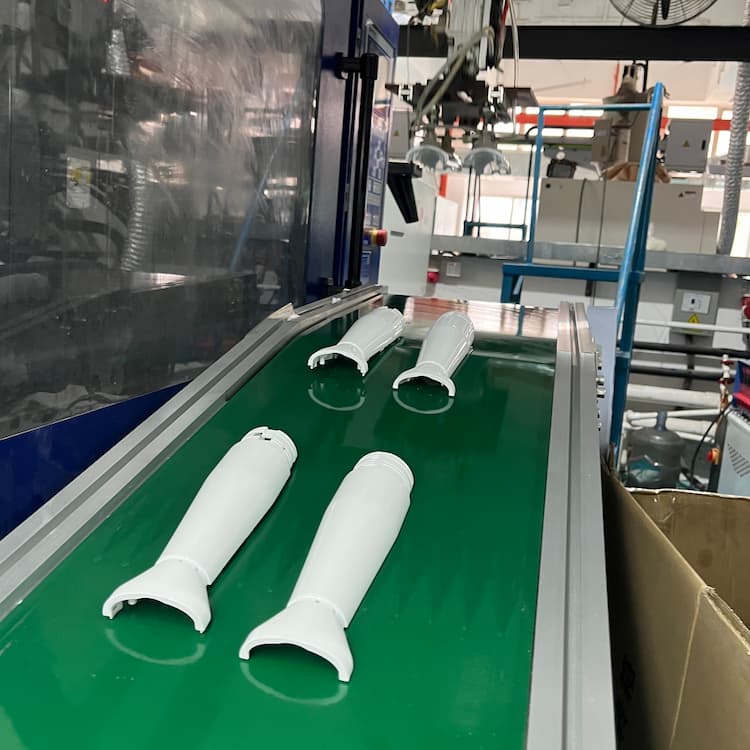

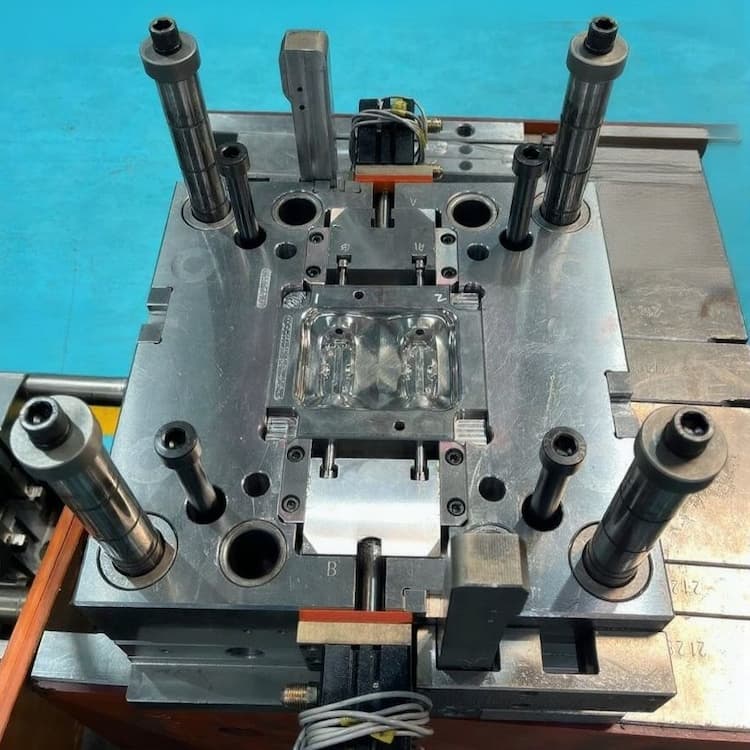

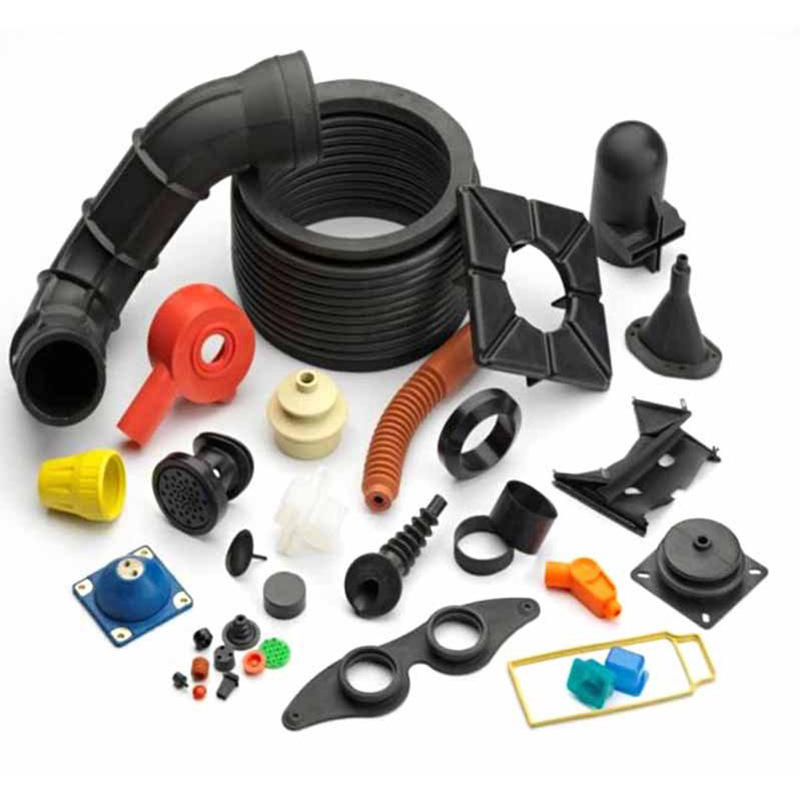

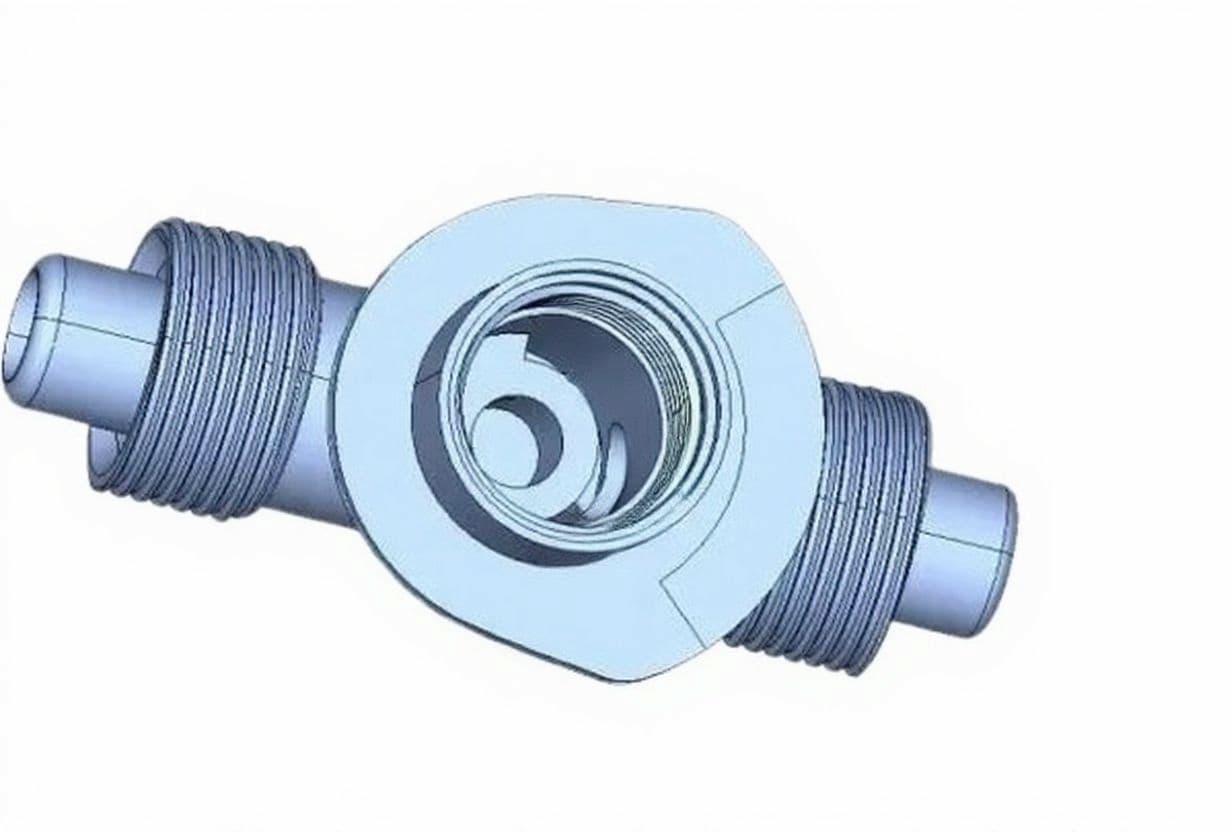

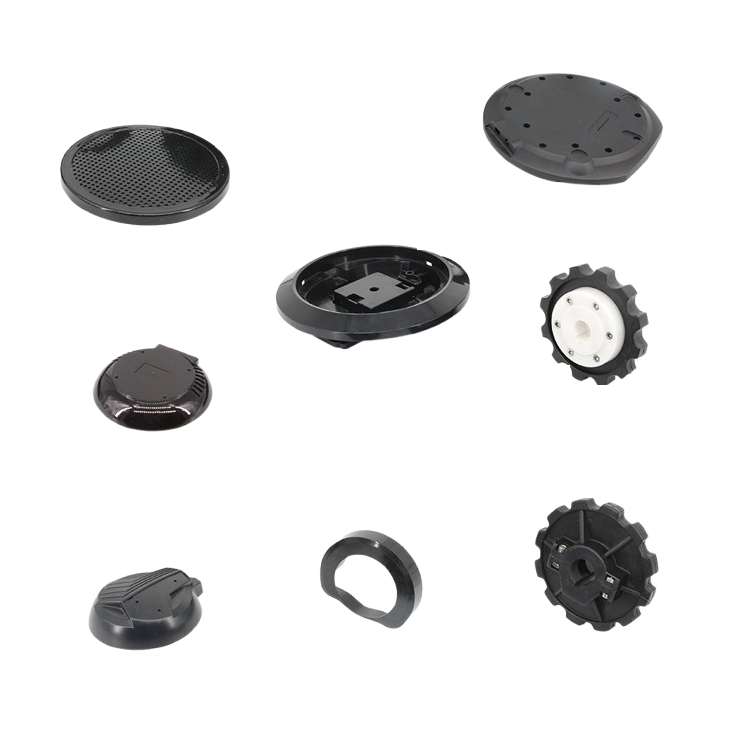

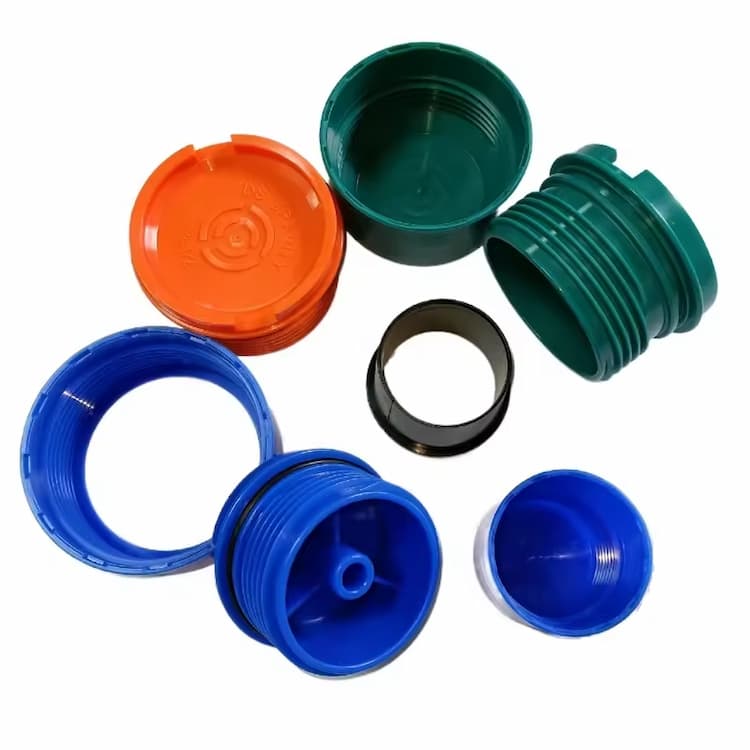

• Threaded core pulling or collapsible core structures
  A manufacturer with diverse mold experience can handle more ambitious projects.

4. Use of Simulation Tools and Predictive Engineering

Advanced mold makers use digital tools to reduce trial-and-error.

• Moldflow analysis for cooling, fill time, and pressure predictions
• Warpage simulations for large or glass-filled components
• Gate optimization to minimize weld lines and flow marks
  Simulation-driven design leads to higher first-shot success rates.

5. Selection of Mold Materials and Steel Grades for Longevity

The steel you choose determines mold durability and maintenance cost.

• P20 for general use
• H13/S136 for long-life, high-precision molds
• 718H and NAK80 for high polish and complex geometry
• Beryllium-copper inserts for rapid heat transfer
  Knowledgeable material selection ensures your mold meets production volume expectations.

6. Engineering Responsiveness During Iteration and Changes

Modifications are common in tooling projects, so agility matters.

• Ability to handle ECNs quickly
• Transparent communication of impact on cost and timeline
• Photo/video updates during machining and assembly
• Professional recommendations instead of passive execution
  Responsive engineering keeps the project moving without unnecessary delays.

V. Quality Control Standards When Selecting an Injection Molding Factory in China



Strong quality control is essential when working with a China-based injection molding factory—especially for custom plastic parts with tight tolerances, cosmetic requirements, or regulatory compliance. While many factories can produce plastic components, only a select group follows rigorous, documented QC systems that ensure stable quality from mold trial to mass production.

Start by checking whether the supplier holds recognized quality management certifications, such as ISO 9001, ISO 14001, or for medical- or healthcare-related products, ISO 13485. Certification alone doesn’t guarantee quality, but it does indicate that the factory maintains structured workflows, traceability, and documented inspection procedures.

Next, look at the supplier’s incoming, in-process, and final inspection controls. Top-tier Chinese injection molding factories follow a layered QC approach involving:

• IQC (Incoming Quality Control): inspection of resin batches, colorants, components, and outsourced items.
• IPQC (In-Process Quality Control): monitoring parameters such as melt temperature, injection pressure, cycle time, and humidity for hygroscopic materials.
• FQC/OQC (Final/Outgoing QC): visual checks, dimensional verification, functional testing, and packaging inspection.

Ask whether the factory uses advanced measurement equipment, such as CMMs, height gauges, pin gauges, optical projectors, colorimeters, and surface roughness testers. Availability of such tools reflects a supplier’s ability to meet detailed dimensional and cosmetic requirements—particularly for consumer electronics, automotive parts, and medical components.

It’s equally important to review their sample inspection reporting, including First Article Inspection (FAI), PPAP, or custom inspection formats. A reliable supplier should provide detailed reports with dimensional data, tolerance analyses, photos, and notes on potential risks or improvement suggestions.

Don’t overlook material traceability and batch control, especially if your parts require UL-rated, food-grade, biocompatible, or flame-retardant resins. The factory should track material lot numbers and store handling logs to prevent mix-ups.

Finally, evaluate the manufacturer’s defect handling and continuous improvement systems. High-quality Chinese injection molding suppliers follow structured methods like 8D reports, root-cause analysis, CAPA processes, and regular internal audits. Their ability to handle issues professionally—rather than making excuses—is one of the strongest indicators of reliability.

Choosing a supplier with mature QC systems directly reduces rejects, stabilizes production, protects your brand reputation, and ensures consistent long-term performance.

VI. Understanding Injection Molding Materials and Resin Support in China



Material selection is one of the most important factors in achieving the right mechanical performance, appearance, and durability. China offers broad access to both global-brand resins and cost-effective local alternatives.

1. Availability of Commodity Resins

Widely used plastics are readily sourced with short lead times.

• ABS, PP, PE, HIPS, PVC
• Cost-effective for general consumer products
• Reliable supply across China’s major polymer distributors
  Commodity resins are easy to source and ideal for low-cost, high-volume parts.

2. Access to Engineering-Grade Plastics

For higher strength, durability, and precision, engineering resins dominate.

• Polycarbonate (PC)
• Nylon (PA6/PA66), with or without glass fiber
• POM (acetal)
• PMMA (acrylic)
  These materials serve demanding applications such as automotive, electronics, and industrial products.

3. Supply of High-Performance and Specialty Plastics

Complex applications may require elevated mechanical or environmental performance.

• PEEK, PPS, PBT, LCP
• High-temperature and chemical-resistant materials
• Optical or flame-retardant grades
  China’s tier-1 resin distributors offer consistent access to specialized materials.

4. Global Resin Brands Widely Supported in China

Most international brands have distribution networks in China.

• Sabic, Covestro, BASF, DuPont, Celanese, LG Chem
• Material conformity, traceability, and data sheets included
  This ensures global quality standards even when production is in China.

5. Local Resin Alternatives for Cost Optimization

China also produces reliable local resin equivalents for less critical parts.

• Cost-effective ABS/PP blends
• Local PA or PC compounds
• Competitive pricing for medium-demand applications
  Local options reduce cost while still offering stable performance.

6. Color Matching, Additives, and Modification Services

Suppliers can tailor materials for specific functional or aesthetic needs.

• UV stabilizers, flame retardants, lubricants
• Custom color matching via Pantone or physical samples
• Compounded materials available through local partners
  Modification services expand material flexibility while controlling cost.

VII. Cost Structure: How Injection Molding Pricing Works in China



Choosing a reliable injection molding manufacturer in China requires understanding how pricing is formed. Unlike simple “per-unit quotes,” injection molding involves several layers of cost drivers. Below is a clear breakdown of the key components that determine the total project cost.

1. Mold (Tooling) Cost

Mold cost is usually the largest upfront investment and depends on several technical factors:

• Mold complexity (single cavity vs. multi-cavity, sliders, lifters, unscrewing cores)
• Steel type (P20, 718H, NAK80, S136, H13)
• Expected mold life (prototype molds vs. mass-production hardened molds)
• Surface finish requirements (polishing, texture, EDM, engraving)
• Part dimensional tolerance and QC requirements

In China, a typical production mold may range from a few thousand USD to tens of thousands depending on complexity.

2. Material Cost

Material selection significantly affects final pricing:

• Commodity plastics (PP, PE, ABS, HIPS) → lower cost
• Engineering plastics (PC, PA, POM, PMMA) → medium cost
• High-performance plastics (PPSU, PEEK, PSU, LSR) → high cost
• Special additives (glass fiber, flame retardant, UV stabilizers) increase price further

China’s advantage is strong supply chain availability from brands like Sabic, Covestro, LG, and domestic equivalents.

3. Production Cost (Machine Time)

This includes:

• Cycle time (how long each part takes to mold)
• Machine tonnage required (higher tonnage = higher hourly rate)
• Operator cost
• Power consumption
• Material drying & preparation

Faster cycle time and optimized mold design directly reduce production cost.

4. Secondary Operations & Post-Processing

Custom parts often require additional steps such as:

• CNC trimming or deflashing
• Ultrasonic welding
• Painting, pad printing, silk screening
• Assembly and functional testing
• Laser marking
• Packaging customization

These processes may add 5–40% to the total cost depending on complexity.

5. Quality Control Requirements

Higher QC expectations directly influence cost:

• Incoming material inspection
• In-process inspections (IPQC)
• Final inspection (FQC/OQC)
• Advanced measurements (CMM, laser scanning, tensile testing)
• Documentation (PPAP, FAI reports, RoHS/REACH compliance)

Projects with tight tolerances or medical/automotive standards require more QC labor and reporting.

6. Logistics & Export-Related Costs

Typically includes:

• Shipping (air, sea, courier)
• Export packaging (cartons, pallets, protective foam)
• Customs paperwork and clearance
• Freight forwarding services

Some suppliers offer DDP terms, including door-to-door shipping.

7. Supplier Margin & Risk Buffer

Every manufacturer adds:

• Standard operating margin (varies by region and company size)
• Risk contingency (compensates for defects, rework, or engineering changes)

Top-tier factories generally keep transparent margins and stable pricing, while low-cost suppliers may hide costs or compromise material quality.

8. Quantity and Long-Term Forecast

Order volume strongly affects pricing:

• Higher quantities → lower unit price
• Stable long-term demand → discounted mold cost or free maintenance
• Prototype-level quantities → higher unit cost

Factories in China prefer ongoing production relationships and often adjust pricing for recurring business.

VIII. Production Capacity, Lead Time & Delivery Reliability of China Mold Makers



Production capability and delivery reliability are critical factors when selecting a Chinese mold maker and injection molding partner. A factory’s ability to meet deadlines, scale production, and ship consistently determines whether your supply chain remains stable as volumes grow.

1. Mold Manufacturing Capacity and Tooling Throughput

Tooling capacity determines how quickly your project moves from design to trial.

• Number of CNC machining centers, EDM machines, and wire-cut equipment
• Parallel mold manufacturing capability (multiple molds built simultaneously)
• Dedicated teams for rough machining, finishing, and assembly
• Typical mold lead times for simple vs. complex tooling
  High tooling throughput reduces development time and minimizes launch delays.

2. Injection Molding Machine Capacity and Scalability

Production scale depends on machine availability and tonnage range.

• Number of injection molding machines and clamping force coverage
• Ability to run multi-shift or 24/7 production schedules
• Support for high-cavity molds and automation systems
• Capacity planning for peak demand or ramp-up stages
  Scalable machine capacity ensures smooth transition from pilot runs to mass production.

3. Typical Lead Times for Sampling and Mass Production

Clear timelines help set realistic expectations.

• Mold design and DFM review timelines
• T1/T2 sampling lead times
• Approval-to-production conversion speed
• Standard production cycle times by material and part complexity
  Defined lead times improve coordination and reduce project uncertainty.

4. On-Time Delivery Performance and Scheduling Discipline

Reliable factories operate under structured production planning systems.

• Use of ERP or MES systems for scheduling
• Order prioritization and production tracking
• Buffer capacity for urgent orders
• Historical on-time delivery performance records
  Strong scheduling discipline minimizes shipment delays and missed commitments.

5. Inventory Management and Production Flexibility

Inventory strategy affects responsiveness and cost control.

• Finished goods inventory options
• Safety stock programs for recurring orders
• Flexible batch sizing for demand fluctuations
• FIFO material management systems
  Good inventory planning improves responsiveness without unnecessary overstock.

6. Logistics Coordination and Export Experience

Delivery reliability extends beyond the factory floor.

• Experience with FOB, EXW, CIF, and DDP shipping terms
• Export documentation accuracy (packing lists, COO, HS codes)
• Partnerships with reliable freight forwarders
• Familiarity with destination country compliance requirements
  Efficient logistics coordination ensures products arrive on time and without customs issues.

7. Risk Management and Contingency Planning

Reliable suppliers prepare for unexpected disruptions.

• Backup machines and tooling redundancy
• Preventive maintenance schedules
• Emergency production recovery plans
• Transparent communication during disruptions
  Proactive risk management protects your supply chain from unexpected delays.

IX. Communication, Project Management & IP Protection When Working with Chinese Manufacturers



Clear communication, structured project management, and strong intellectual property (IP) protection are essential for successful long-term cooperation with Chinese injection molding suppliers. These factors often determine whether a project runs smoothly or encounters costly misunderstandings.

1. Establish Clear and Documented Communication Channels

Written communication reduces ambiguity and prevents costly errors.

• All specifications, drawings, and tolerances documented in writing
• Change requests confirmed through formal ECN (Engineering Change Notice)
• Use of shared folders or PLM systems for document control
• Defined primary points of contact on both sides
  Clear documentation ensures expectations are aligned and traceable.

2. Evaluate Project Management Structure and Responsiveness

A structured project team improves execution speed and accountability.

• Dedicated project manager or account engineer
• Defined milestones for tooling, sampling, and production
• Regular progress updates with photos, videos, or reports
• Clear escalation paths for urgent issues
  Strong project management keeps timelines predictable and transparent.

3. Confirm Language Proficiency and Technical Communication Ability

Technical accuracy depends on effective communication.

• Engineers and PMs fluent in technical English
• Ability to discuss drawings, GD&T, and material specifications
• Clear written summaries after meetings or calls
• Understanding of international quality and compliance standards
  Effective communication minimizes rework and misinterpretation.

4. Protect Intellectual Property with Legal and Operational Measures

IP protection requires more than verbal assurances.

• Signed NDA / NNN agreements enforceable under Chinese law
• Clear ownership definition for molds, tooling, and designs
• Restricted access to sensitive drawings and data
• Internal IP control procedures within the factory
  Well-structured IP protection safeguards your designs and investments.

5. Control Mold Ownership, Storage, and Usage Rights

Mold ownership must be contractually clear.

• Written confirmation that molds are customer-owned
• Mold identification plates with customer name or ID
• Defined rules for mold relocation or transfer
• Access rights for mold inspection or audit
  Clear ownership prevents unauthorized use or duplication.

6. Manage Quality Issues with Formal Documentation

Structured issue resolution improves accountability.

• NCR reports with root-cause analysis
• Corrective and preventive action (CAPA) documentation
• Photo/video evidence for defects
• Defined approval process for deviations
  Formal documentation ensures problems are resolved permanently, not temporarily.

X. Final Supplier Selection Checklist & Best Practices for Injection Molding in China



Before committing to a long-term injection molding partner in China, a structured final evaluation helps reduce risk and ensures alignment across technical, commercial, and operational aspects. This checklist consolidates best practices into actionable decision points.

1. Confirm Technical and Manufacturing Capability Match

Ensure the supplier’s strengths align with your specific project needs.

• Proven experience with your part complexity and industry
• Appropriate mold-making capability (precision, cavity count, steel grade)
• Familiarity with required materials and tolerances
• Demonstrated ability to meet cosmetic and functional requirements
  A capability match reduces development risk and rework.

2. Validate Quality Systems and Performance History

Past quality performance predicts future results.

• Documented QC systems (IQC, IPQC, OQC)
• Sample inspection reports and capability data (Cp/Cpk)
• Certifications such as ISO 9001, ISO 13485, or IATF 16949
• Clear corrective action and traceability processes
  Reliable quality systems ensure consistency over long production runs.

3. Review Cost Transparency and Quotation Structure

Clear pricing prevents disputes and hidden costs.

• Separated tooling and unit pricing
• Defined mold life assumptions and maintenance terms
• Clarified cost drivers (material, cycle time, cavity count)
• Quotation validity and revision rules
  Transparent pricing enables accurate budgeting and forecasting.

4. Assess Lead Time Commitment and Delivery Reliability

On-time delivery is critical to your supply chain.

• Realistic mold and sampling lead times
• Historical on-time delivery performance
• Capacity flexibility for ramp-up or urgent orders
• Logistics and export experience
  Delivery reliability protects product launch schedules and customer commitments.

5. Confirm Communication, Documentation, and Project Control

Strong communication prevents misunderstandings.

• Dedicated project manager and escalation path
• Written specifications and version-controlled drawings
• Formal ECN and approval processes
• Regular progress reporting
  Well-managed communication keeps projects on track and predictable.

6. Secure IP Protection and Mold Ownership Rights

Legal clarity protects your long-term interests.

• NDA/NNN agreements enforceable in China
• Written mold ownership confirmation
• Mold usage, storage, and transfer conditions
• Data security and access control measures
  Strong IP protection safeguards your designs and investments.

7. Start with a Pilot Project or Trial Order

A controlled trial reduces risk before scaling.

• Small-volume production run
• Evaluation of quality, communication, and responsiveness
• Assessment of problem-solving ability
• Verification of actual lead times vs. promises
  Pilot projects provide real-world validation before full commitment.

8. Plan for Long-Term Partnership and Continuous Improvement

The best suppliers grow with your business.

• Willingness to optimize cost and cycle time
• Openness to process improvement initiatives
• Stable management and workforce
• Long-term collaboration mindset
  Strategic partnerships deliver greater value over time than transactional sourcing.

XI. Conclusion: Choosing the Right Injection Molding Partner in China



China remains one of the world’s most competitive and capable destinations for injection molding, offering a unique combination of advanced tooling expertise, scalable production capacity, broad material availability, and cost efficiency. However, success in sourcing injection-molded parts from China depends not on geography alone, but on a disciplined and methodical supplier selection process.

A reliable Chinese injection molding partner must demonstrate more than competitive pricing. Strong mold design and engineering expertise, structured quality control systems, material and resin support, predictable lead times, and proven delivery reliability are essential foundations for consistent production. Equally important are clear communication practices, professional project management, and enforceable intellectual property protection to prevent misunderstandings and safeguard long-term investments.

By thoroughly evaluating technical capabilities, quality standards, cost structures, production capacity, and operational transparency, buyers can significantly reduce sourcing risk and avoid common pitfalls. Starting with a pilot project and building a relationship based on documented processes and mutual accountability further strengthens confidence before scaling to mass production.

Ultimately, the most successful injection molding projects in China are built on strategic partnerships rather than transactional sourcing. When the right supplier is chosen, manufacturers can leverage China’s mature ecosystem to achieve high-quality parts, stable supply chains, and sustainable cost advantages over the long term.

Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction: Why Choose China for CNC Machining Services?



China has become one of the world’s most competitive and capable hubs for CNC machining, attracting startups, SMEs, and global brands seeking high-precision custom machined parts. The country’s unique manufacturing ecosystem combines mature industrial clusters, a wide range of machining capabilities, and cost structures significantly more favorable than Western markets.

A major advantage is the speed and scalability of Chinese CNC manufacturers. Thanks to dense supplier networks and highly optimized workflows, projects can transition from drawing review to production within days. Whether you need aluminum parts for electronics, stainless steel components for medical devices, or tight-tolerance aerospace fixtures, China’s machining industry covers almost every material and precision requirement. At the same time, competitive pricing allows buyers to achieve substantial cost savings without compromising quality—provided the right supplier is chosen.

However, the large number of CNC shops also means quality levels vary significantly. Some factories focus on simple commodity parts, while others specialize in complex 5-axis machining, tight tolerance medical parts, or export-grade manufacturing. This makes selecting the right partner a strategic decision rather than a simple purchase.



II. How to Define CNC Machining Requirements for Chinese Manufacturers



Before contacting any CNC machining manufacturer in China, the most important step is to define your technical and business requirements with precision. Clear requirements not only help suppliers quote accurately but also reveal which factories truly have the capability to produce your parts. Many sourcing failures begin with unclear drawings, inconsistent tolerances, or missing specifications—leading to miscommunication, delays, or mismatched expectations.

Start by ensuring you have complete engineering files, ideally including 3D CAD (STEP, IGES, or SolidWorks) and fully dimensioned 2D drawings with GD&T where applicable. Specify critical dimensions, surface finish requirements, tolerances, threading standards, and any areas where deviation is unacceptable. If your part involves multiple mating components, note the functional relationships clearly. Chinese suppliers take engineering drawings seriously; the more precise your documents, the more reliable the quotation and production result.

Next, determine your material requirements upfront. For CNC machining in China, aluminum (6061, 6063, 7075, 6082), stainless steel (304, 316, 17-4PH), brass, copper, titanium, plastics, and composites are widely available. However, certain alloys may affect price, machining time, or tool wear. Indicating any required certifications—such as RoHS, REACH, DFARS, or aerospace-grade materials—helps filter suppliers with proper sourcing capability.

Also clarify your expected volume and production model: prototype, low-volume batch, or long-term mass production. Not all CNC shops handle all scales equally well; some excel in rapid one-offs, while others specialize in automated, high-volume machining cells. Include your preferred surface finish, such as anodizing, sandblasting, polishing, brushing, passivation, heat treatment, or coatings. Chinese factories coordinate these post-processes, but only if the requirements are explicit.

Lastly, define your quality expectations and inspection needs, including required measurement reports (e.g., CMM reports, material certificates, PPAP, FAI). Setting these expectations early allows you to filter non-professional suppliers immediately.

A well-prepared requirements package dramatically increases the accuracy of quotations, speeds up communication, and ensures you attract only the suppliers capable of delivering the machining quality your custom parts demand.

III. CNC Machining Capabilities: What to Look for in a China Manufacturer



Once your requirements are clearly defined, the next step is to evaluate whether a CNC machining manufacturer in China has the technical foundation to support your project. Not all factories possess the same level of equipment, programming expertise, or process control. A supplier’s core capabilities directly impact machining accuracy, repeatability, surface finish quality, lead time, and long-term scalability.

Begin by assessing the machine inventory and configuration. A professional CNC shop should have a balanced mix of 3-axis, 4-axis, and 5-axis CNC machining centers, as well as turning centers with live tooling if your parts include rotational features. Factories capable of ±0.01 mm or tighter tolerances will typically use Japanese or German machines (e.g., FANUC, DMG Mori, Mazak, Brother, Okuma). If ultra-high precision or optical components are required, ask whether they operate temperature-controlled machining rooms and high-speed spindles.

Evaluate the supplier’s programming and CAM engineering competency. Skilled programmers using advanced CAM platforms (Mastercam, Powermill, Fusion 360, UG NX) are essential for complex geometries, deep pockets, thin-walled structures, and 5-axis toolpaths. A common issue with under-qualified Chinese suppliers is suboptimal toolpath strategies, leading to vibration marks, poor surface consistency, or dimensional drift. Reviewing sample toolpaths or asking how they machine critical features can reveal their true technical depth.

Next, investigate their material handling and machining experience. A strong supplier should demonstrate expertise across different aluminum grades (6061, 6063, 7075, 6082), stainless steels (304, 316, 17-4PH), tool steels, brass, copper, titanium, and engineering plastics. Each material behaves differently—heat generation, tool wear, deformation risks—and experienced machinists know how to adjust speeds, feeds, coolant flow, and fixturing strategies accordingly.

Equally important is their fixture design capability. Advanced CNC machining relies heavily on robust and repeatable fixturing. Ask whether they design custom fixtures in-house, use modular quick-change systems, or rely on basic clamps. Poor fixturing is one of the largest contributors to part inconsistency, chatter, and tolerance failures.

Finally, assess their measurement and inspection resources. A technically capable Chinese CNC manufacturer should be equipped with CMM machines, height gauges, pin gauges, ring gauges, roughness testers, and calibration standards. Without proper metrology equipment—especially for tight-tolerance projects—accuracy cannot be guaranteed, no matter how good the machines are.

Evaluating these core technical capabilities helps you differentiate between entry-level CNC workshops and professional machining companies capable of delivering consistent, export-grade quality for international customers.

IV. CNC Machining Quality Control and Certifications in China



Technical capabilities alone are not enough; a reliable CNC machining manufacturer in China must also demonstrate a strong commitment to quality control. High-precision parts, tight tolerances, and repeatable production require robust quality assurance (QA) systems, certified processes, and professional inspection practices. Evaluating a supplier’s QA framework early can prevent costly errors, delays, and rework.

Begin by reviewing their certifications and compliance standards. ISO 9001 is the baseline for quality management, while specialized certifications such as ISO 13485 for medical devices or IATF 16949 for automotive parts indicate adherence to industry-specific quality protocols. Factories serving aerospace or defense sectors may also follow NADCAP standards or maintain rigorous material traceability documentation.

Next, assess the inspection equipment and procedures. Leading CNC shops should have Coordinate Measuring Machines (CMM), height gauges, optical projectors, roughness testers, and calibrated measuring tools. These instruments enable accurate verification of critical dimensions, surface finishes, and geometric tolerances. Ask how frequently tools are calibrated, and whether they maintain inspection logs for each batch.

Review the manufacturer’s in-process quality control practices. High-quality suppliers implement checks at multiple stages—material incoming inspection, first-article inspection, in-process verification, and final inspection. Advanced factories may also employ statistical process control (SPC) to monitor dimensional stability and detect deviations before parts leave the shop floor. This level of control is essential for high-mix, low-volume production, where consistency can be challenging.

Additionally, verify traceability and documentation capabilities. Export-grade CNC manufacturers often provide material certificates, inspection reports, FAI (First Article Inspection), and CMM reports along with each shipment. This transparency ensures that you can confirm material grade, dimensions, and finish meet specifications, reducing the risk of disputes or failures during assembly.

Finally, discuss quality culture and accountability. Experienced suppliers proactively flag potential issues, propose design adjustments, and clearly communicate tolerances and limitations. Factories without a strong quality culture may ignore subtle issues until parts fail, resulting in wasted time, money, and trust.

In summary, thoroughly evaluating a Chinese CNC supplier’s QA processes, certifications, and inspection capabilities ensures your custom parts meet the required specifications and provides peace of mind that production can scale without compromising quality.

V. Engineering Support and DFM Expertise for CNC Machined Parts



Even the most advanced CNC machines cannot guarantee a successful project if the manufacturer lacks engineering expertise. Engineering support and design-for-manufacturability (DFM) competence are critical factors when selecting a CNC machining supplier in China, especially for complex, high-precision, or multi-component parts. A capable supplier will not only execute your design but also help optimize it for cost, manufacturability, and quality.

Start by evaluating their CAD/CAM capabilities. Professional suppliers should be proficient in mainstream CAD platforms such as SolidWorks, AutoCAD, NX, or CATIA, as well as CAM software like Mastercam, PowerMill, or Fusion 360. This ensures they can interpret your designs accurately, simulate toolpaths, and foresee potential issues before cutting material. Misinterpretation at this stage is a common source of defects or costly rework.

Next, consider their DFM feedback and problem-solving skills. Experienced CNC engineers proactively identify areas in your design that may be difficult to machine, prone to deformation, or likely to produce poor surface finish. They may suggest changes to wall thicknesses, fillet radii, hole placement, or tolerances to reduce machining time and tool wear, improving both efficiency and final quality.

Check whether the supplier can support prototype iteration. The ability to produce functional prototypes, evaluate performance, and incorporate design adjustments before committing to full-scale production is a hallmark of a mature CNC supplier. This iterative process often reveals hidden challenges, such as stress concentrations, tolerance stack-ups, or fixture limitations, that can be addressed early.

Additionally, evaluate their experience with multi-material or complex assemblies. Factories capable of machining aluminum, stainless steel, titanium, and engineering plastics within the same project demonstrate flexibility and technical depth. They can advise on material selection, machining sequences, and post-processing compatibility, ensuring that parts meet functional and aesthetic requirements.

Finally, assess their communication and technical responsiveness. A strong engineering team asks detailed questions, documents decisions clearly, and keeps you informed throughout the project. Suppliers that treat engineering support as an add-on or fail to provide constructive feedback often struggle to meet tight tolerances or handle complex machining requirements reliably.

By selecting a Chinese CNC manufacturer with robust engineering support and proven DFM competence, you not only reduce production risk but also improve efficiency, reduce costs, and increase the likelihood of first-pass success in both prototypes and production parts.

VI. Assessing Production Capacity and Lead Times in China CNC Shops



When sourcing a CNC machining manufacturer in China, evaluating production capacity and lead times is as critical as assessing technical capabilities. A supplier may have advanced machines and skilled operators, but if they cannot handle your required volume or meet deadlines, the project risks delays, cost overruns, or compromised quality.

Start by reviewing the number and type of machines available. A professional CNC shop should have a mix of 3-axis, 4-axis, and 5-axis machining centers, as well as turning machines with live tooling if required. The availability of multiple machines allows parallel production, reducing bottlenecks and ensuring consistent throughput for both prototypes and production runs. Ask for details about machine utilization rates and maintenance schedules, as overbooked or poorly maintained equipment can lead to unexpected delays.

Next, consider the shop’s production workflow and scalability. Some factories specialize in low-volume, high-mix projects, offering flexibility for prototypes and complex parts. Others focus on high-volume, repetitive production with standardized processes. Make sure the supplier’s capabilities match your order type. For instance, a small-batch prototype run may require more hands-on attention and iterative quality checks, whereas mass production relies on automated setups and repeatable processes.

Lead times are another critical factor. Confirm the average turnaround for prototypes, small batches, and full production runs. Pay attention to potential delays due to tooling, material sourcing, or scheduling conflicts. Reliable suppliers will provide realistic timelines and buffer estimates rather than overpromising to secure your order. Request historical examples or case studies of similar parts to verify their track record.

Finally, assess their flexibility for urgent orders and contingency plans. Some Chinese CNC shops maintain spare machines, extra capacity, or flexible shifts to accommodate last-minute requests. Understanding how a factory handles unexpected changes—material shortages, design revisions, or urgent delivery—can prevent costly disruptions later.

By carefully evaluating production capacity and lead times, you ensure that the chosen CNC manufacturer in China can not only produce high-quality parts but also meet your schedule requirements consistently. This step bridges the gap between technical capability and reliable delivery, which is essential for long-term sourcing success.

VII. Supplier Communication and Project Management for CNC Machining in China



Effective communication and professional project management are often the deciding factors between a successful CNC machining partnership and a project filled with delays and misunderstandings. Even a technically capable Chinese manufacturer can produce subpar results if communication is slow, unclear, or inconsistent.

Start by evaluating responsiveness and clarity. A reliable supplier should respond promptly to emails or messages, ask relevant technical questions, and provide clear explanations of machining processes, lead times, and cost breakdowns. Pay attention to how they handle technical discussions—do they demonstrate understanding, propose solutions, and offer suggestions for manufacturability? This is often a strong indicator of experience and professionalism.

Project management practices are equally important. Top-tier CNC shops assign project coordinators or managers who oversee the production from drawing review to final inspection. They track progress, report on milestones, coordinate between engineering and production teams, and ensure that timelines are maintained. Ask whether they use project management tools, status reports, or visual dashboards to monitor work in progress.

Language and time-zone compatibility are practical considerations. Suppliers who communicate fluently in your preferred language reduce misinterpretation risk. Additionally, understanding overlapping working hours helps you resolve issues quickly without significant delays.

For larger or long-term projects, inquire about documented processes and workflow transparency. Professional factories maintain clear documentation for drawings, revisions, tooling, inspection records, and change requests. This ensures accountability and minimizes errors caused by human oversight or lost information.

Finally, assess how the supplier handles problem-solving and unexpected changes. Experienced manufacturers proactively notify customers of potential issues—such as tool wear, material shortages, or tolerance challenges—and offer viable solutions. A partner that communicates problems early is far more reliable than one that hides issues until the product fails inspection.

Strong communication combined with structured project management ensures your Chinese CNC machining partner can consistently deliver high-quality parts on time, reducing risk and making collaboration smooth and predictable.

VIII. CNC Machining Cost, Pricing Transparency, and Avoiding Cheap Quotes



Understanding cost structure is critical when selecting a CNC machining manufacturer in China. While competitive pricing is often a primary motivation for sourcing from China, the lowest quote can be misleading and may lead to quality issues, hidden fees, or project delays. A transparent cost breakdown and realistic pricing are essential to ensure both quality and reliability.

Start by analyzing the components of CNC machining cost. Major factors include:

• Material costs: Depending on the alloy or grade, material prices vary significantly. High-strength aluminum (7075) or specialty stainless steels are more expensive than 6061, 6063 aluminum or 304 stainless steel.
• Machining hours: Complex geometries, tight tolerances, deep pockets, and multi-axis operations increase cutting time. Suppliers should provide machining hour estimates that reflect part complexity.
• Tooling and fixtures: Custom jigs, clamps, or specialized cutters may add one-time or recurring costs. Ensure the quotation specifies if tooling is included.
• Surface finish and post-processing: Processes such as anodizing, polishing, coating, or heat treatment can substantially affect cost.
• Inspection and quality control: High-precision parts require thorough inspection, including CMM or FAI reports, which may be charged separately.

Evaluate whether the supplier provides transparent quotations. A professional manufacturer clearly separates each cost element and explains assumptions. Avoid quotes that only offer a lump sum without details, as this can hide additional charges or compromise quality.

Be cautious of extremely low quotes. While cost savings are desirable, the cheapest supplier may cut corners by using lower-quality materials, skipping inspection steps, or subcontracting critical operations without disclosure. Instead, aim for value-based selection, balancing cost with technical capability, quality assurance, and reliability.

Finally, consider long-term cost implications. A slightly higher upfront cost for a reliable, communicative, and quality-focused supplier can prevent expensive rework, delayed shipments, or customer dissatisfaction. Transparency, trust, and realistic pricing are far more valuable than chasing the lowest number.

By understanding CNC machining cost components and insisting on transparent, realistic quotations, you ensure that your sourcing decision prioritizes both quality and efficiency, leading to successful, repeatable production.

IX. Step-by-Step Process to Select a Reliable CNC Machining Manufacturer in China



Choosing the right CNC machining partner in China requires a structured, methodical approach. Following a clear step-by-step process helps ensure technical capability, quality, cost-effectiveness, and long-term reliability.

Step 1: Shortlist Potential Suppliers
Start with online directories, trade shows, industry references, or existing networks. Focus on manufacturers with relevant experience, certifications, and proven capabilities in your material and part type.

Step 2: Evaluate Technical Capabilities
Review each supplier’s machinery, tooling, CAM/CAD capabilities, and material expertise. Confirm that they can achieve the tolerances, finishes, and complexity your project requires.

Step 3: Assess Quality Assurance Systems
Check for ISO or industry-specific certifications, inspection equipment, and in-process quality controls. Ask for sample reports, FAI documentation, and references to verify consistency.

Step 4: Review Engineering Support and DFM Skills
Engage with the supplier’s engineering team to evaluate their design-for-manufacturability guidance, prototyping capabilities, and willingness to provide proactive technical suggestions.

Step 5: Request Detailed Quotations
Obtain transparent, itemized quotes including material, machining hours, tooling, post-processing, and inspection. Compare value, not just price, to avoid cheap-quote pitfalls.

Step 6: Conduct Communication and Project Management Evaluation
Assess responsiveness, clarity, and project tracking methods. Ensure the supplier provides a dedicated point of contact or project manager to oversee your order from start to finish.

Step 7: Verify Production Capacity and Lead Times
Confirm that the factory can handle your required volume and timeline, whether for prototyping, small-batch, or mass production. Review their workflow, machine availability, and contingency plans.

Step 8: Mitigate Risks and Protect IP
Sign NDAs, limit access to proprietary designs, establish golden samples, and clarify subcontracting policies. Ensure documentation and traceability are in place to protect quality and IP.

Step 9: Conduct Sample Production or Pilot Run
Before committing to large orders, test the supplier with a small batch or prototype. Evaluate quality, delivery performance, and responsiveness to adjustments.

Step 10: Confirm Long-Term Partnership
Once all criteria are met, formalize contracts including quality standards, lead times, pricing, and IP protection. Maintain ongoing communication and periodic reviews to ensure continuous performance.

Following this systematic approach gives buyers confidence in selecting a CNC machining manufacturer in China that delivers precision, reliability, and value. It transforms the sourcing process from a gamble into a strategic, repeatable workflow that supports successful product development and long-term partnerships.

X. Managing Risks and Protecting IP with Chinese CNC Manufacturers



Sourcing CNC machined parts from China offers many advantages, but it also introduces risks, including quality inconsistencies, material substitution, subcontracting without disclosure, and potential intellectual property (IP) exposure. Proactively managing these risks is essential to protect your investment and ensure project success.

Intellectual property protection should be addressed at the very beginning. Use Non-Disclosure Agreements (NDAs) to safeguard CAD files, drawings, and proprietary designs. Limit access to sensitive documents and, when possible, share only essential manufacturing data. Reputable suppliers respect IP and are familiar with legal protections for international clients.

Quality and consistency risks can be mitigated by thorough supplier evaluation, including references, certifications, and inspection capabilities. For critical or high-precision parts, request first-article inspections (FAI), sample runs, or CMM measurement reports. Establishing golden samples ensures there is a benchmark for acceptable quality before full production begins.

Subcontracting and transparency are additional concerns. Some factories may outsource complex operations without informing the customer, which can lead to inconsistent quality. Ask suppliers explicitly about in-house capabilities, subcontracting policies, and oversight mechanisms. Clear contractual agreements specifying allowed subcontracting and accountability help reduce surprises.

Contingency planning is also key. Discuss how suppliers handle urgent design changes, material shortages, or machine downtime. Reliable manufacturers maintain backup strategies, extra capacity, or flexible scheduling to minimize disruption.

By addressing IP protection, quality control, subcontracting transparency, and contingency planning early, buyers can significantly reduce the risks associated with sourcing CNC machined parts in China. Taking these precautions ensures a secure, predictable, and long-term partnership.

XI. Conclusion



Sourcing a reliable CNC machining manufacturer in China involves more than just finding the lowest price—it requires careful evaluation of technical capabilities, quality assurance, engineering support, production capacity, and communication practices. By clearly defining your part requirements, assessing machinery and process expertise, verifying certifications and inspection systems, and prioritizing transparency in cost and IP protection, you set the foundation for a successful manufacturing partnership.

Combining these factors with proactive project management, realistic lead times, and structured supplier selection ensures consistent, high-quality output while minimizing risk. Following a step-by-step approach not only streamlines the sourcing process but also builds a long-term relationship with a capable manufacturer, empowering you to bring complex, custom CNC machined parts from concept to production efficiently and confidently.

Partner with a trusted CNC Machining expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction to PPSU Injection Molding



Polyphenylsulfone (PPSU) is a high-performance thermoplastic that has gained increasing importance across industries where durability, heat resistance, and chemical stability are critical. Unlike commodity plastics, PPSU delivers exceptional toughness and dimensional stability, even under extreme environmental conditions. These qualities make it a preferred choice for applications that must withstand repeated sterilization, continuous stress, or contact with aggressive chemicals.

Plastic injection molding has become the most efficient and precise method to shape PPSU into functional parts. Through this process, manufacturers can produce highly complex geometries with repeatable accuracy, making PPSU suitable for a wide spectrum of advanced applications ranging from surgical instruments and sterilization trays to aerospace connectors and industrial pump housings.

As industries push for lightweight, long-lasting, and cost-effective alternatives to metal and traditional plastics, PPSU injection molding stands out as a reliable manufacturing solution. The combination of PPSU’s intrinsic material properties with the scalability of injection molding offers unmatched performance and value in demanding sectors.



II. Unique Properties of PPSU Material



PPSU stands apart from conventional plastics due to its exceptional balance of mechanical, thermal, and chemical properties. These qualities allow it to perform reliably in environments where other engineering plastics fail. The following are the most critical properties that define PPSU’s value:

1. High Thermal Stability
   PPSU maintains structural integrity at continuous-use temperatures up to 180 °C, with a glass transition temperature around 220 °C. It does not warp or degrade under sterilization processes such as steam autoclaving, which makes it highly suitable for repeated high-temperature exposure.
2. Exceptional Toughness and Impact Resistance
   Compared to polycarbonate and polysulfone, PPSU demonstrates significantly higher impact resistance. This toughness ensures that molded parts can withstand accidental drops, mechanical stress, and long-term wear without cracking or losing strength.
3. Hydrolysis Resistance and Sterilization Durability
   PPSU resists hydrolytic degradation, making it stable in hot water and steam environments. It can endure hundreds of autoclave sterilization cycles without loss of mechanical performance or discoloration. This is a key reason for its adoption in the medical and healthcare industries.
4. Dimensional Stability and Transparency
   PPSU exhibits low creep and minimal dimensional change under load, which is essential for precision-molded components. Additionally, it offers a naturally transparent appearance, allowing manufacturers to produce clear or tinted parts without sacrificing performance.
5. Chemical Resistance
   PPSU resists exposure to detergents, disinfectants, and a wide range of chemicals. Unlike polycarbonate, it is not prone to environmental stress cracking when in contact with aggressive agents.
6. Biocompatibility and Regulatory Compliance
   Many PPSU grades meet FDA, NSF, and ISO 10993 requirements, enabling safe use in medical devices and food-contact applications. This regulatory acceptance accelerates product development in industries with strict safety standards.

Taken together, these unique properties make PPSU an indispensable material for manufacturing high-performance plastic components that require durability, reliability, and safety under demanding operating conditions.

III. Advantages of PPSU Injection Molding



The combination of PPSU’s material properties with the efficiency of injection molding provides manufacturers with a powerful solution for creating high-performance parts. Unlike machining or thermoforming, injection molding enables consistent, scalable production with greater design freedom. Key advantages include:

1. Complex Geometry with Precision
   Injection molding allows PPSU to be shaped into intricate designs with tight tolerances. This is particularly valuable for medical and aerospace components where precision is non-negotiable.
2. Scalability for Production Volumes
   Once the mold is built, PPSU parts can be produced in large quantities with consistent quality. This makes injection molding cost-effective for both medium- and high-volume manufacturing, compared to machining from solid PPSU stock.
3. Durability and Long Service Life
   The toughness and chemical resistance of PPSU translate into longer-lasting components. Injection-molded parts can withstand repeated sterilization, exposure to aggressive environments, and mechanical stress, ensuring excellent return on investment.
4. Weight Reduction Compared to Metals
   PPSU provides comparable strength and toughness to some lightweight metals but at a fraction of the weight. This advantage is crucial for aerospace, automotive, and portable medical devices where weight savings directly impact performance and usability.
5. Consistency in Mass Production
   Injection molding ensures uniformity across all parts, reducing variability and minimizing rejection rates. This reliability is critical when producing medical devices or aerospace components, where safety standards are uncompromising.
6. Design Flexibility
   Features such as undercuts, living hinges, and integrated assemblies can be molded directly into PPSU components, eliminating secondary processes and reducing overall production costs.

By combining these advantages, PPSU injection molding enables manufacturers to meet demanding functional requirements while optimizing costs, production speed, and reliability.

IV. Processing Guidelines for PPSU in Injection Molding



While PPSU offers outstanding performance, it also requires careful handling during the injection molding process to achieve consistent results. Its high processing temperatures and sensitivity to moisture demand precise control of both material preparation and mold conditions. Key guidelines include:

1. Pre-Drying and Moisture Management
   PPSU is hygroscopic, meaning it readily absorbs moisture from the environment. If not properly dried, moisture can cause surface defects, bubbles, or hydrolytic degradation during molding. Pre-drying at 150 °C for 3–4 hours is typically recommended to ensure optimal performance.
2. Processing Temperature Range
   PPSU must be processed at high melt temperatures, usually between 340–400 °C. Maintaining uniform barrel temperature is critical to prevent thermal degradation, which could reduce part performance and aesthetics.
3. Mold Design Considerations
   Mold temperatures between 160–200 °C are recommended for optimal surface finish and dimensional stability. Because PPSU has relatively high viscosity, careful gating and venting design is necessary to ensure complete filling of complex geometries without defects.
4. Shrinkage and Flow Characteristics
   PPSU exhibits relatively low shrinkage, typically in the range of 0.5–0.7%, which helps in achieving precise tolerances. However, its flow properties are less favorable than commodity plastics, requiring higher injection pressures and well-balanced runner systems.
5. Cycle Time Optimization
   Due to high mold temperatures and PPSU’s thermal requirements, cycle times may be longer compared to other engineering plastics. However, optimized cooling systems and hot-runner designs can help improve efficiency without compromising quality.
6. Post-Processing and Sterilization
   PPSU parts often undergo secondary processes such as annealing to relieve internal stresses. They are also highly compatible with repeated sterilization methods, including autoclaving, gamma radiation, and chemical disinfection, without significant degradation.

By following these processing guidelines, manufacturers can achieve reliable, high-quality PPSU molded parts that fully leverage the material’s performance potential.

V. Applications of PPSU Injection Molded Parts



PPSU’s unique combination of heat resistance, toughness, chemical stability, and biocompatibility makes it ideal for applications in industries where reliability and safety are paramount. Through injection molding, it can be shaped into durable and precise components for a wide range of end uses.

1. Medical and Healthcare
   PPSU is widely used in surgical instruments, sterilization trays, and reusable medical device housings due to its ability to withstand hundreds of autoclave cycles without losing mechanical strength or clarity. Dental tools, endoscopic components, and instrument handles are common examples. Its compliance with ISO 10993 and FDA standards ensures safety in direct patient contact.
2. Food & Beverage Industry
   The material’s hydrolysis resistance and non-toxic nature make it suitable for repeated use in hot water and steam environments. PPSU is commonly found in baby bottles, reusable water bottles, coffee machine parts, and food service trays where long-term durability and safety are critical.
3. Aerospace and Automotive
   PPSU provides lightweight yet strong alternatives to metals in fluid handling systems, fuel line connectors, and structural housings. Its stability under thermal and mechanical stress ensures reliability in demanding conditions, contributing to weight reduction and improved fuel efficiency.
4. Electronics and Industrial Applications
   PPSU’s dielectric strength and resistance to chemicals enable its use in insulating components, connectors, pump housings, and industrial valves. It performs reliably in harsh operating conditions where other plastics would fail.

Across these sectors, PPSU injection molded parts consistently deliver superior durability and performance, reducing maintenance needs and extending product lifecycles.

VI. PPSU Comparison with Alternative High-Performance Plastics



While PPSU is a versatile and durable material, it often competes with other high-performance plastics. Understanding its advantages and trade-offs helps manufacturers make informed material selection decisions for their applications.

1. PPSU vs. PSU (Polysulfone)
   • PPSU offers superior toughness and impact resistance compared to PSU.
   • Both materials withstand sterilization, but PPSU tolerates more cycles without degradation.
   • PSU is less expensive, but PPSU provides greater long-term durability and reliability.
2. PPSU vs. PEEK (Polyetheretherketone)
   • PEEK provides higher mechanical strength and chemical resistance, making it suitable for extreme environments like oil & gas and aerospace structural components.
   • PPSU, however, is more cost-effective, easier to mold into complex geometries, and offers excellent sterilization resistance, making it better suited for medical and consumer applications.
3. PPSU vs. Polycarbonate (PC)
   • Both are transparent plastics, but PPSU outperforms PC in chemical resistance and heat stability.
   • PC is lower-cost and easier to process, but it is prone to stress cracking and cannot withstand repeated sterilization cycles like PPSU.
4. PPSU vs. PEI (Polyetherimide)
   • Both materials share high heat resistance, but PPSU is tougher and more impact-resistant.
   • PEI has better rigidity and slightly higher strength, but PPSU’s superior hydrolysis resistance makes it better for applications involving frequent hot-water or steam exposure.





Summary:
PPSU strikes a balance between performance, processability, and cost. While PEEK and PEI may offer higher mechanical strength in specific cases, PPSU stands out in applications requiring impact resistance, sterilization durability, and chemical stability at a more economical cost.

VII. Challenges and Limitations for PPSU injection molding



Although PPSU injection molding provides outstanding performance advantages, there are certain challenges and limitations that must be considered during material selection and manufacturing. Understanding these factors helps companies weigh trade-offs and plan accordingly.

1. High Processing Temperatures
   PPSU requires melt temperatures in the range of 340–400 °C, which means specialized equipment and molds capable of withstanding extreme heat are necessary. Not all injection molding facilities are equipped for such conditions, potentially limiting production options.
2. Extended Cycle Times
   Due to its high mold temperature requirements (160–200 °C), cooling cycles can be longer compared to commodity plastics. This can affect production efficiency and overall throughput.
3. Higher Material Cost
   PPSU is significantly more expensive than standard engineering plastics such as ABS, polycarbonate, or nylon. While its durability offsets cost in many high-performance applications, it may not be suitable for cost-sensitive consumer products.
4. Specialized Tooling and Expertise
   Successful PPSU injection molding requires precise mold design, balanced runner systems, and high-pressure injection capability. Toolmakers and processors need experience with high-performance polymers to minimize scrap and ensure consistent part quality.
5. Limited Color Availability
   While PPSU is naturally transparent and can be tinted, its range of color options is more limited compared to commodity plastics. For industries where aesthetics are critical, this may require additional processing steps.

Despite these challenges, PPSU remains a preferred choice for industries where long-term reliability, safety, and performance outweigh cost and processing complexity. When applied strategically, its benefits far exceed the limitations.

VIII. Case Studies: PPSU Injection Molding in Action



Real-world applications of PPSU injection molding highlight how its unique properties translate into practical solutions across industries. Below are representative case studies demonstrating its value.

1. Medical Sterilization Trays and Instrument Handles
   A leading medical device manufacturer replaced stainless steel sterilization trays with injection-molded PPSU alternatives. The PPSU trays not only reduced overall weight by 40% but also withstood over 1,000 autoclave cycles without cracking or discoloration. This change improved handling for hospital staff while reducing long-term replacement costs.
2. Baby Feeding Bottles
   PPSU has become a preferred material for premium baby bottles due to its BPA-free composition, transparency, and sterilization resistance. Unlike polycarbonate bottles, PPSU bottles can endure repeated boiling, steam sterilization, or dishwasher cleaning without stress cracking, ensuring long-term safety and durability for infants’ daily use.
3. Aerospace Fluid Handling Components
   In aerospace applications, PPSU injection molded connectors and housings have replaced heavier aluminum components. By reducing weight while maintaining mechanical strength and chemical resistance, PPSU parts contributed to improved fuel efficiency and reduced maintenance downtime, while also meeting stringent FAA compliance standards.
4. Industrial Pump Housings
   An industrial equipment company adopted PPSU injection molding for pump housings exposed to aggressive cleaning chemicals and hot water. PPSU’s hydrolysis and chemical resistance allowed the pumps to operate reliably in harsh conditions, significantly extending service life compared to nylon or polycarbonate designs.

IX. Conclusion



PPSU injection molding has emerged as a cornerstone technology for producing high-performance plastic components in industries where safety, durability, and reliability are non-negotiable. With its exceptional toughness, sterilization resistance, thermal stability, and chemical resilience, PPSU bridges the gap between lightweight design and long-term performance.

Compared with alternatives like PSU, PC, PEI, and even PEEK, PPSU stands out for applications requiring repeated sterilization, hydrolysis resistance, and impact strength at a more economical cost. While it does present challenges—such as high processing temperatures and higher material costs—the benefits often outweigh these limitations when viewed over a product’s full lifecycle. From medical devices and baby products to aerospace connectors and industrial housings, PPSU injection molding consistently delivers value where other plastics fall short. As demand for lightweight, safe, and long-lasting materials grows, PPSU is expected to play an even larger role in advanced manufacturing and product innovation.

For companies seeking to combine design freedom, production scalability, and unmatched durability, PPSU injection molding offers a proven path forward. Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction to BPA and BPA-Free Plastics



Bisphenol-A (BPA) has been used for decades as a key building block in the production of polycarbonate (PC) plastics and epoxy resins. These materials became popular for their excellent clarity, toughness, and heat resistance—properties that made them ideal for food containers, drinkware, baby bottles, medical devices, electronics, and countless household products.

However, the increasing awareness of BPA’s potential health effects has driven a global shift toward safer alternatives. Consumers now actively look for BPA-free labels, while manufacturers across industries—from baby product brands to medical device suppliers—are replacing BPA-containing plastics with safer, high-performance materials.

As a result, “BPA-free plastic materials” have become a major focus of product development, manufacturing, and regulatory compliance. In plastic injection molding and mold manufacturing, selecting BPA-free materials is no longer just a marketing choice but a requirement for many food-contact, healthcare, and consumer product applications.



II. Understanding BPA and Its Health Risks



Bisphenol-A (BPA) is an industrial chemical widely used in producing polycarbonate (PC) plastics and epoxy resins. These materials are valued for their clarity, durability, and heat resistance, which is why BPA has historically been found in food containers, drinkware, baby bottles, medical device housings, electronic components, and many common household products.
However, BPA raises concern because of how it behaves in both plastics and the human body. Key issues include:

1. BPA can leach from plastics under heat, stress, or wear

When BPA-based plastics are exposed to boiling water, microwaving, dishwasher cycles, sunlight, acidic foods, or scratching, small amounts of BPA may migrate into food, beverages, or the environment. This leaching potential makes the material a concern for food-contact and baby-care applications.

2. BPA is an endocrine disruptor with documented health concerns

BPA can mimic estrogen and interfere with hormonal signaling. Research has associated BPA exposure with reproductive system effects, developmental impacts in infants and children, metabolic disorders, behavioral changes, and increased risks of certain cancers. While global health agencies differ in their assessments, many countries have taken precautionary action—especially for infant products.

3. Sensitive groups drive the demand for BPA-free materials

Because infants, young children, and medical patients are more vulnerable to hormone-disrupting chemicals, industries such as baby-care, medical, dental, and food packaging increasingly require BPA-free materials. Manufacturers are replacing polycarbonate with safer alternatives including Tritan™, PPSU, PP, PET, and LSR silicone, all of which offer strong performance without BPA-related risks.

III. BPA in Everyday Household Products & How to Minimize Exposure



Although many companies have shifted to safer alternatives, BPA-containing plastics still exist in numerous older or budget household items. Because BPA-based polycarbonate and epoxy materials were widely used for decades, people may unknowingly encounter BPA in daily routines. Understanding where BPA appears—and how to reduce exposure—helps consumers make healthier and more informed choices. Key points include:

1. Many household products still contain BPA due to long-term use and older designs

Common BPA sources include older water bottles, baby bottles made before regulation changes, food-storage containers, microwave-safe plastic bowls, reusable drinkware, 5-gallon water dispenser jugs, thermal paper receipts, canned-food linings, and certain appliance housings. Even though new versions of these products increasingly use BPA-free materials, older items remain in many homes and workplaces.

2. BPA leaches more easily under heat, wear, or chemical exposure

Polycarbonate and epoxy-based plastics can release BPA when exposed to boiling water, microwaving, dishwasher cycles, UV sunlight, acidic foods, or simply wear and scratches accumulated over years of use. This leaching potential is why BPA is especially concerning in items that come into contact with food, drinks, or human skin.

3. Consumers can minimize BPA exposure with practical daily steps

Effective strategies include replacing scratched or aged plastic containers, avoiding heating food in plastic, choosing durable BPA-free materials like Tritan, PPSU, PP, PET, or silicone, using glass or stainless steel for hot liquids, limiting contact with thermal receipts, and checking resin identification codes. Plastics labeled 1, 2, 4, or 5 are naturally BPA-free, while items marked 7 (Other) should be avoided unless specifically labeled “BPA-Free.”

IV. Common BPA-Free Plastic Materials



A wide range of BPA-free plastics is now used across household goods, food-contact applications, baby products, medical devices, and consumer packaging. Each material offers its own balance of safety, clarity, durability, chemical resistance, and manufacturability—allowing designers and manufacturers to select the best option for each product.

1. Tritan™ Copolyester (Eastman Tritan) – Premium BPA-Free Alternative to PC
   Tritan is one of the most advanced BPA-free polymers on the market, known for exceptional toughness, clarity, dishwasher durability, and chemical resistance. It is ideal for reusable drinkware, baby bottles, food containers, water filters, and medical components. Manufacturers value its ease of injection molding and long-term clarity without yellowing.
2. Polypropylene (PP) – Widely Used in Food Containers & Baby Products
   PP is naturally BPA-free, lightweight, economical, and resistant to moisture, heat, and chemicals. It is used extensively for lunch boxes, microwave-safe containers, baby bottle components, medical syringes, and caps. Its low density also contributes to sustainability by reducing material consumption.
3. Polyethylene (HDPE, LDPE) – Safe for Food Packaging & Household Use
   Polyethylene is another naturally BPA-free material and is one of the most commonly recycled plastics worldwide. HDPE offers high strength and impact resistance, ideal for milk jugs, detergent bottles, cutting boards, and medical containers. LDPE is flexible and is often used for squeezable bottles, food wraps, and soft-touch components.
4. PET (Polyethylene Terephthalate) – High Clarity & Widely Recycled
   PET is frequently used for beverage bottles, food packaging, and personal-care products due to its excellent clarity and barrier performance. Although not ideal for repeated high-heat exposure, PET is BPA-free and forms part of one of the most efficient recycling streams globally.
5. PPSU (Polyphenylsulfone) – Premium Medical-Grade BPA-Free Resin
   PPSU is a high-performance, BPA-free plastic used in hospitals and laboratories. It withstands repeated steam sterilization, boiling, and harsh disinfectants without cracking or discoloration. It is common in reusable medical instruments, baby bottles, and components requiring extreme durability.
6. Silicone (LSR & HCR) – Ultra-Safe for Food & Infant Products
   Medical-grade silicone is inherently BPA-free, hypoallergenic, flexible, and resistant to temperature from -40°C to 200°C. It is widely used in baby bottle nipples, pacifiers, cooking utensils, food molds, and medical tubing. Its softness, stability, and chemical inertness make it ideal for direct skin and food contact.
7. Stainless Steel & Glass – Non-Plastic BPA-Free Alternatives
   While not polymers, stainless steel and borosilicate glass are commonly used in BPA-free product lines. They offer excellent chemical resistance, durability, and a premium user experience. Manufacturers often combine these materials with BPA-free plastics like PP or silicone for hybrid designs.

V. Comparison: BPA-Free Plastics vs. BPA-Containing Plastics



As global regulations and consumer awareness continue to grow, BPA-free plastics have become the preferred choice for food contact products, baby items, and reusable consumer goods. While traditional BPA-containing plastics—especially polycarbonate (PC)—offered excellent clarity and toughness for decades, their safety concerns have prompted a major shift toward modern BPA-free alternatives such as Tritan™, PP, PET, PE, PPSU, and medical-grade silicone.

The following comparison highlights the performance, safety, durability, and cost differences between the two categories, helping manufacturers and consumers understand why BPA-free materials have become the new industry standard. Below is a clear, article-ready comparison chart:

Property / Category	BPA-Free Plastics (Tritan, PP, PET, PE, PPSU, Silicone)	BPA-Containing Plastics (PC)
BPA Safety	✔ BPA-Free – No risk of BPA migration	✖ Contains BPA – Potential leaching risk
Clarity	Excellent (Tritan, PET), Good (PP translucent)	Excellent clarity
Impact Strength	Excellent (Tritan, PPSU), Good (PP, PET)	Very high impact strength
Heat Resistance	High (PPSU, Tritan), Moderate (PP, PET)	High but with BPA concerns at heat
Sterilization Durability	Excellent (PPSU), Good (Tritan, Silicone)	Good but risk of BPA release under repeated heating
Chemical Resistance	High (PPSU, PP, PE, Silicone)	Moderate; susceptible to some detergents & solvents
Dishwasher Durability	Excellent (Tritan, PPSU), Good (PP, PET depending on grade)	Good, but concerns increase when scratched
Food Contact Safety	✔ Meets global BPA-free standards	✖ Increasingly regulated or restricted
Cost Level	Low to High depending on material	Medium, historically economical

VI. Benefits of Using BPA-Free Plastics



Selecting BPA-free plastics provides a broad range of advantages for consumer health, product safety, regulatory compliance, and long-term material performance. Modern BPA-free polymers—such as Tritan copolyester, PP, PE, PET, and medical-grade silicone—are engineered to achieve high durability and clarity without the endocrine-disrupting risks of BPA. These benefits apply widely across food contact products, household goods, medical devices, personal-care packaging, and industrial applications.

1. Enhanced Consumer Health & Safety
   BPA-free plastics eliminate concerns about endocrine disruption and chemical leaching into food, beverages, and skin-contact products. This is especially critical for infants, children, pregnant women, and individuals with heightened sensitivity to environmental chemicals.
2. High Performance Under Heat and Stress
   Many BPA-free alternatives offer exceptional heat resistance, impact strength, and clarity—sometimes even outperforming BPA-containing plastics. Tritan copolyester, for example, remains stable during boiling, dishwashing, and sterilization, making it ideal for food containers, baby bottles, and healthcare equipment.
3. Improved Regulatory Compliance
   With increasingly strict global standards (FDA, EU 10/2011, China GB, and national BPA restrictions), BPA-free materials ensure smoother compliance during audits and global product distribution. This reduces regulatory risk and future-proof products against tightening consumer safety regulations.
4. Market Appeal & Stronger Brand Positioning
   “BPA-Free” labeling is now a major purchasing factor for consumers. Products made with BPA-free plastics often appear more premium, more trustworthy, and more aligned with modern health-conscious lifestyles—helping brands differentiate in highly competitive markets.
5. Long-Term Material Stability
   Many BPA-free plastics exhibit lower rates of yellowing, cracking, or degradation over time, especially when exposed to UV, disinfectants, and high heat. This improves product lifespan and reduces warranty claims or customer complaints.
6. Greater Versatility for Product Design
   Modern BPA-free polymers support complex geometries, thin-wall molding, high clarity, and vibrant coloration without compromising safety. Manufacturers gain more flexibility when designing consumer goods, medical components, and packaging solutions.
7. Compatibility with Recycling & Sustainability Goals
   Several BPA-free materials—such as PET, HDPE, and certain grades of PP—fit into widely accepted recycling streams. This supports circular-material initiatives and reduces environmental concerns related to landfills or microplastics.

VII. How BPA-Free Plastics Are Used in Manufacturing



BPA-free plastics are deployed across a wide range of consumer and medical products, and their manufacturability depends heavily on the correct selection of material, mold design, and processing parameters. Understanding how each material behaves during molding ensures stable quality, long-term performance, and regulatory compliance. Key Manufacturing Considerations are as below:

1. Injection Molding of BPA-Free Polymers
   Most BPA-free materials—such as Tritan, PP, PE, PETG, PPSU, and certain medical silicones (via LSR injection molding)—are highly suitable for injection molding. Each grade requires optimized processing conditions:

• • Tritan and PETG benefit from precise melt temperature control to maintain clarity.
  • PP and PE require balanced cooling to prevent warpage or shrinkage.
  • PPSU demands high-temperature tooling capable of handling engineering polymers.
    Injection molding allows for thin-wall designs, multi-cavity production, high repeatability, and strong mechanical performance.

2. Mold Design Requirements for BPA-Free Plastics
   Mold design plays an essential role in ensuring optical clarity, structural stability, and tight tolerances. Important mold considerations include:

• • Highly polished mold surfaces for transparent plastics such as Tritan and PETG.
  • Gated runner designs that prevent flow marks, haze, or weld lines.
  • High-temperature steel and insulation plates for engineering-grade materials like PPSU.
  • Venting strategies to prevent burn marks and maintain stable cavity filling.
    Proper mold design directly impacts part aesthetics, dimensional accuracy, and lifetime performance of the finished product.

3. Compatibility with Secondary Processing
   Many BPA-free plastics support secondary finishing processes, including:

• • Ultrasonic welding for PP, PE, PPSU, and Tritan components.
  • Pad printing, laser marking, and silk screening for product branding.
  • Overmolding and multi-material integration (e.g., PP + silicone, Tritan + TPE).
    These processes expand design possibilities, allowing manufacturers to create ergonomic grips, decorative details, tamper-proof features, and medical-grade assemblies.

4. Regulatory Compliance During Production
   Manufacturing with BPA-free plastics must comply with national and international standards such as:

• • FDA (Food Contact Requirements)
  • EU 10/2011 (Plastic Food Contact Materials)
  • China GB Standards
  • ISO 10993 (Biocompatibility for medical applications)
    Compliance requires strict management of material traceability, mold cleaning, contamination control, and production documentation.

5. Quality Control for BPA-Free Products
   To ensure consistent safety and performance, manufacturers typically adopt quality management practices such as:

• • Visual inspection for clarity, color consistency, and flow defects.
  • Mechanical testing for impact strength and chemical resistance.
  • Dishwasher durability tests for houseware and baby products.
  • Sterilization cycle testing for PPSU, Tritan, and medical materials.

VIII. Major Consumer Applications of BPA-Free Plastics



BPA-free plastics have become essential in modern households, childcare products, food-contact items, personal-care packaging, and lifestyle accessories. As awareness of BPA-related health risks increases, consumers and brands are shifting toward safer materials such as Tritan™, PP, PET, PE, silicone, and PPSU. These materials offer clarity, durability, and peace of mind—without the concerns associated with BPA leaching.

1. Baby & Infant Care Products
   Infants are the group most sensitive to chemical exposure, making BPA-free materials especially important. Modern baby items use BPA-free plastics for:

• • Baby bottles and sippy cups (Tritan, PP, PPSU)
  • Bottle nipples and pacifiers (medical-grade silicone)
  • Breast pump components and milk storage systems
    These materials provide impact resistance, sterilization endurance, and complete safety for repeat daily use.

2. Food Storage & Meal Prep Containers
   BPA-free plastics now dominate the food container market, where daily heat exposure and direct food contact raise concerns about chemical leaching. Common BPA-free uses include:

• • Reusable microwave-safe containers (PP)
  • Transparent meal prep boxes and refrigerator organizers (Tritan, PET)
  • Freezer-safe containers and pantry systems (HDPE, PP)
    These materials balance light weight, durability, and chemical resistance while ensuring long-term food safety.

3. Drinkware & Hydration Bottles
   Reusable bottles, tumblers, and travel flasks increasingly use BPA-free plastics that can withstand daily wear and frequent washing. Popular choices include:

• • Tritan for clear, glass-like bottles
  • PP for lightweight sports bottles
  • Silicone for collapsible travel bottles
    These materials support design flexibility while maintaining clarity, impact resistance, and odor resistance.

4. Kitchenware & Household Items
   Many frequently used kitchen tools have shifted to BPA-free plastic options for safer contact with food and beverages. Typical items include:

• • Mixing bowls, measuring cups, and utensils
  • Air-tight pantry jars and spice containers
  • Ice trays, cutting boards, and organizers
    BPA-free materials deliver long-term durability while withstanding hot water, cleaning agents, and repeated handling.

5. Personal Care & Cosmetic Packaging
   BPA-free plastics are widely used in cosmetic and skincare packaging because they offer chemical stability and excellent appearance. Common products include:

• • Pump bottles and mist sprayers
  • Cream jars and lotion containers
  • Travel-size toiletry bottles
    These materials prevent chemical interactions with sensitive formulations while supporting premium-looking packaging.

6. Medical & Healthcare-Related Household Products
   While full medical devices require stricter compliance, many household health-related products now use BPA-free formulations, such as:

• • Home-use sterilizers and sanitizer containers
  • Reusable inhaler chambers
  • Dental hygiene tools
    Materials like PPSU and silicone offer superior sterilization resistance and biocompatibility.

7. Outdoor, Sports & Travel Goods
   BPA-free plastics are ideal for lightweight, durable, and portable outdoor gear, including:

• • Camping water bottles and foldable food containers
  • Filter housings for portable purifiers
  • Durable lunch boxes and travel-friendly organizers
    These materials maintain performance in varying temperatures and environmental conditions.

IX. Conclusion



Selecting the right BPA-free plastic is no longer just a consumer trend—it has become a global standard across food packaging, household goods, medical devices, and premium lifestyle products. As awareness of BPA’s health risks continues to rise, manufacturers and brands must align material choices with safety expectations, regulatory demands, and performance requirements.

BPA-free materials such as Tritan™, PPSU, PEI, PP, PETG, HDPE, and silicone each offer unique advantages in durability, transparency, heat resistance, and chemical stability. Understanding these differences allows designers, engineers, and purchasing teams to match the correct resin to the final application while ensuring user safety.

Ultimately, the transition to BPA-free plastics represents a broader shift toward health-conscious materials, responsible manufacturing, and modern product design. By prioritizing safe resins and proper production practices—such as precise mold making, high-quality injection molding, and strict material verification—brands can deliver products that meet the highest expectations of both safety and performance.

Ready to bring your design to life with precision and speed? Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction



Plastic molded threads are integral features in countless products, providing fastening, sealing, or connection functions without requiring additional machining or assembly steps. By forming threads directly during the injection molding process, manufacturers can achieve significant cost savings, improved dimensional repeatability, and higher production efficiency compared to traditional post-processing techniques such as tapping, thread cutting, or insert installation.

Injection molding of threads is especially beneficial in high-volume industries like packaging, automotive, and consumer goods, where consistent quality and cycle time reduction are critical. With advancements in tooling technology — such as unscrewing cores, collapsible cores, and stripping methods — it is now possible to mold both internal and external threads with high precision, even for complex geometries and miniature designs.

As demand for lightweight, durable, and high-performance plastic components grows, understanding the principles of molded thread design and production has become essential for product designers and mold engineers alike.



II. Types of Threads in Plastic Injection Molding



Not all threads are created equal. The choice of thread type depends on the product’s function, assembly requirements, and production constraints. In injection molding, the following categories are most common:

1. Internal Threads (Female Threads)

• • Found inside the part, such as bottle necks, caps, and housings.
  • Typically require unscrewing cores, collapsible cores, or stripping methods depending on material and geometry.

2. External Threads (Male Threads)

• • Molded on the outer surface of parts, such as threaded plugs, connectors, and closures.
  • Easier to mold compared to internal threads but still demand attention to draft angles and parting line placement.

3. Continuous Threads

• • Run along the entire circumference of the part.
  • Common in screw-cap closures and fasteners.
  • Require precise synchronization of mold opening and core pull for demolding.

4. Segmented Threads

• • Appear only in sections of the circumference.
  • Reduce tooling complexity and cycle time, often used when full 360° threading is unnecessary.

5. Standardized Threads

• • Follow international thread standards (e.g., ISO metric, UNC, bottle cap standards).
  • Ensure compatibility with existing threaded components across industries.

6. Custom Threads

• • Designed for product-specific requirements, such as anti-tamper closures, medical connectors, or decorative parts.
  • Often optimized for easier molding and assembly, balancing functionality with manufacturability.

III. Why Use Molded Threads in Plastic Parts?



In modern product design, threads play a vital role in fastening, sealing, and assembly. Traditionally, threads on plastic components were created through secondary operations such as tapping, thread cutting, or embedding metal inserts. However, these processes add cost, increase cycle time, and reduce efficiency. Injection molding offers an alternative by producing threads directly in the mold, eliminating additional machining steps.

The main advantages of using molded threads include:

1. Cost Efficiency
   • By integrating threads into the molding process, manufacturers save on tooling, labor, and secondary machining costs.
   • Especially in high-volume production, the per-unit savings are significant compared to post-processing.
2. Dimensional Consistency
   • Threads formed directly in the mold have uniform geometry and tight tolerances.
   • This consistency is critical for sealing applications, such as bottle caps, connectors, and closures, where even minor variations can cause leakage or failure.
3. Strength and Integrity
   • Molded threads are formed as part of the base component, eliminating potential weaknesses from machining or assembly.
   • The seamless integration ensures better stress distribution and longer product life.
4. Production Efficiency
   • Removing secondary machining steps reduces total cycle time and accelerates throughput.
   • Automation of unscrewing or collapsing cores further enhances productivity in high-volume environments.
5. Design Flexibility
   • Injection molding allows for the creation of specialized or custom thread designs that would be impractical to machine.
   • Features such as anti-tamper threads, child-resistant closures, or segmented threads can be integrated directly into the molded part.

In short, molded threads combine economic benefits with performance advantages, making them a preferred solution in industries where precision, cost control, and large-scale production are critical.

IV. Injection Molding Techniques for Threaded Parts



Producing threads through injection molding requires specialized tooling solutions that allow the part to be released from the mold without damaging the thread geometry. The choice of method depends on the thread type, material properties, production volume, and cost considerations. The four most common techniques are:

1. Unscrewing Core Mechanism

• Principle: A rotating core unscrews the threaded part during mold opening, mimicking the action of removing a screw.
• Applications: Ideal for deep or fine-pitch threads where stripping would cause part damage. Widely used in connectors, precision closures, and threaded caps.
• Advantages: High dimensional accuracy, suitable for both internal and external threads, excellent repeatability.
• Limitations: Increases tooling complexity, cycle time, and maintenance requirements.

2. Collapsible Core System

• Principle: A collapsible core consists of multiple segments that expand during injection and collapse inward during demolding, freeing the molded threads.
• Applications: Used for parts with internal threads and limited space for unscrewing mechanisms. Common in medical devices, compact housings, and consumer electronics.
• Advantages: Eliminates the need for unscrewing, reduces cycle time, and allows molding of threads in restricted geometries.
• Limitations: Higher tooling cost, more prone to wear, and typically limited to certain thread geometries.

3. Stripping Method

• Principle: Relies on the flexibility of the molded plastic to allow the threaded part to be stripped or twisted off the core during ejection.
• Applications: Best suited for shallow threads, wide-pitch designs, or flexible materials such as polyethylene (PE) and polypropylene (PP). Frequently applied in bottle caps and closures.
• Advantages: Simplest and most cost-effective method, short cycle times, no moving mechanisms required.
• Limitations: Not suitable for rigid plastics or deep threads, as stripping may damage the part or the threads.

4. Use of Inserts

• Principle: Threads are created by incorporating pre-made inserts, typically metal, into the molded plastic during the injection process.
• Applications: Used when high strength, durability, or wear resistance is required, such as in automotive fasteners, appliance housings, or load-bearing assemblies.
• Advantages: Provides superior thread strength, reusability, and wear resistance. Compatible with high-torque applications.
• Limitations: Adds assembly steps, increases unit cost, and slows down cycle time compared to fully molded threads.

V. Design Considerations for Molded Threads Plastic Part



Designing threads for injection-molded plastic parts requires balancing functionality, manufacturability, and cost. Unlike machined threads, molded threads must account for tooling restrictions, material behavior during molding, and the mechanics of part ejection. Key design considerations include:

1. Draft Angles

• Draft is essential for demolding.
• Internal threads generally require more draft than external threads to ease ejection.
• Too little draft can cause thread sticking, while too much draft may affect assembly fit.

2. Thread Depth and Pitch

• Shallow threads are easier to mold and strip, especially in flexible plastics.
• Deep or fine-pitch threads often require unscrewing cores for precision and durability.
• Coarser pitches are more forgiving during demolding and assembly.

3. Material Shrinkage

• Plastics shrink during cooling, which affects thread dimensions and fit.
• Different resins (e.g., PP, ABS, nylon) have unique shrinkage rates that must be factored into thread design.
• Failure to account for shrinkage can result in loose or overly tight fits.

4. Stress Concentration

• Sharp corners at thread roots may lead to cracking under load or during ejection.
• Rounded root designs distribute stress better and increase part longevity.
• Reinforcement ribs can be added to threaded areas if torque resistance is required.

5. Mold Release and Ejection

• Threads must be designed with smooth surfaces and sufficient clearance to prevent sticking.
• Proper coordination between thread release (via unscrewing, collapsing, or stripping) and ejection pins is critical.

6. Tolerances and Standards

• Molded threads rarely achieve the same tight tolerances as machined threads.
• Designers should allow functional tolerance ranges, especially for consumer products like bottle caps or closures.
• For technical products (medical, automotive), adherence to ISO or ANSI thread standards may be required.

7. Assembly and End-Use Requirements

• Threads should be designed for the intended torque load, sealing performance, and reusability.
• For closures requiring tamper resistance or child safety, special thread profiles can be integrated.
• If repeated engagement is expected, inserts or reinforced designs may be preferable.

VI. Advantages and Limitations of Plastic Part with Molded Threads



Plastic molded threads offer many benefits over traditional machining or secondary operations, but they also come with inherent constraints tied to molding processes and material behavior. Understanding both sides is critical for making informed design and manufacturing decisions.

1. Advantages of Molded Threads

• Cost Reduction

• • Eliminates secondary operations such as tapping, cutting, or installing threaded inserts.
  • Especially cost-effective in high-volume production.

• Production Efficiency

• • Threads are formed directly during molding, reducing cycle time and handling.
  • Automation of unscrewing or collapsible core systems further boosts throughput.

• Design Integration

• • Threads can be seamlessly combined with other molded features such as seals, undercuts, or decorative elements.
  • Enables the creation of complex parts in a single step.

• Consistency and Repeatability

• • Molded threads deliver uniform dimensions across large production runs.
  • Reduced human error compared to post-machining.

• Lightweight and Versatile

• • Plastic threads are lighter than metal alternatives.
  • A wide variety of resins (e.g., PP, ABS, nylon, POM, PC) provide flexibility in strength, chemical resistance, and thermal stability.

2. Limitations of Molded Threads

• Tooling Complexity

• • Unscrewing and collapsible cores increase mold design complexity, cost, and maintenance.
  • Stripping methods are limited to certain materials and geometries.

• Dimensional Tolerance

• • Molded threads cannot achieve the ultra-tight tolerances of machined metal threads.
  • Variability in shrinkage and warpage must be accounted for.

• Wear and Durability

• • Plastic threads are more prone to wear under repeated use compared to metal threads.
  • High-torque or load-bearing applications may require inserts or reinforced designs.

• Material Limitations

• • Rigid plastics may not be suitable for stripping, limiting design flexibility.
  • Heat, chemical, or UV exposure can degrade thread performance over time.

• Cycle Time Impact

• • Unscrewing core systems extend cycle time compared to simple molded parts.
  • This can be a constraint in ultra-high-volume production.

VII. Common Applications of Plastic Molded Threads



Plastic molded threads are widely used across industries because they combine cost efficiency with functional versatility. Whether for fastening, sealing, or connection purposes, molded threads enable reliable performance in lightweight designs that can be mass-produced at scale. Below are some of the most common application areas:

1. Packaging Industry

• Bottle Caps and Closures
  • Molded threads are critical for beverage, food, and personal care packaging.
  • Stripping methods are commonly applied with flexible plastics such as polypropylene (PP) and polyethylene (PE).
  • Precision in thread design ensures tight sealing, tamper resistance, and smooth consumer usability.
• Dispensing Closures
  • Flip-top caps, pump actuators, and child-resistant closures rely on accurate thread geometry for proper function.

2. Automotive Components

• Fluid System Connectors
  • Molded threads are found in fuel, coolant, and washer fluid reservoirs, where secure, leak-free connections are vital.
  • Unscrewing core mechanisms ensure high precision for torque-resistant designs.
• Interior Fastening Components
  • Non-load-bearing threaded connectors for dashboards, trims, and housings reduce weight while simplifying assembly.

3. Medical and Healthcare Devices

• Syringe Hubs and Connectors
  • Molded threads allow secure and sterile connections for medical instruments.
  • Precision molding ensures compliance with ISO thread standards in healthcare.
• Diagnostic Equipment
  • Threaded housings and closures for sample containers require dimensional accuracy and chemical resistance.

4. Consumer Electronics and Appliances

• Threaded Housings
  • Plastic threads are molded into casings for small appliances, chargers, and electronic housings.
  • Collapsible core systems enable compact designs without secondary operations.
• Connectors and Fittings
  • Threaded plastic components provide easy assembly while reducing weight compared to metal fasteners.

5. Industrial and Specialty Products

• Plastic Fasteners
  • Molded screws, nuts, and caps are used in environments requiring non-conductive or corrosion-resistant materials.
• Laboratory Equipment
  • Threaded closures on sample vials, reagent bottles, and testing containers demand chemical resistance and precision.

VIII. Case Studies of Molded Thread Products



Practical examples help illustrate how molded thread technology is applied in different industries. Each case study highlights the chosen molding technique, the design considerations, and the benefits achieved in production.

1. Beverage Bottle Caps – Stripping Method

• Application: High-volume bottle caps for water, soda, and juice packaging.
• Process: Stripping method with flexible plastics such as polypropylene (PP).
• Design Considerations:
• • Shallow, wide-pitch threads for easy demolding.
  • Tamper-evident rings integrated into the mold design.
  • Draft angles optimized to allow stripping without damaging threads.
• Outcome:
• • Cycle times of less than 10 seconds achieved in mass production.
  • Low tooling complexity ensures cost efficiency.
  • High repeatability and reliable sealing performance at large scale.

2. Automotive Fluid Connectors – Unscrewing Core System

• Application: Threaded connectors for coolant and washer fluid systems.
• Process: Unscrewing core mechanism to form deep, fine-pitch threads.
• Design Considerations:
• • Material shrinkage compensated to ensure leak-free seals.
  • Reinforced thread roots to withstand torque during assembly.
  • Multi-cavity molds with automated unscrewing for higher productivity.
• Outcome:
• • High-strength threaded parts capable of withstanding pressure and vibration.
  • Consistent quality aligned with automotive safety standards.
  • Reduction in secondary machining processes and assembly time.

3. Medical Syringe Connectors – Collapsible Core System

• Application: Precision syringe hubs and diagnostic connectors.
• Process: Collapsible core system for compact internal threads.
• Design Considerations:
• • Compliance with ISO medical thread standards (e.g., Luer connections).
  • Biocompatible plastics with chemical resistance (e.g., polycarbonate, medical-grade PP).
  • Ultra-smooth surface finish to prevent contamination and ensure sterility.
• Outcome:
• • Accurate and sterile threaded connections, suitable for single-use medical devices.
  • Shortened production cycle while maintaining precision.
  • Reduced tooling wear compared to unscrewing systems for small, high-volume parts.

4. Consumer Electronics Housings – Hybrid Approach

• Application: Threaded enclosures for small appliances and chargers.
• Process: Combination of molded external threads and metal inserts for high-torque zones.
• Design Considerations:
• • Thin-wall design balanced with functional thread strength.
  • Metal inserts placed using insert molding for repeatable durability.
  • Aesthetic surface finishes maintained without secondary machining.
• Outcome:
• • Lightweight, compact housings with reliable fastening.
  • Extended life cycle compared to purely plastic threads.
  • Integration of threaded features reduced assembly cost and part count.

IX. Quality Control and Testing of Molded Threads Product



Ensuring the accuracy and reliability of molded threads is critical, as even small dimensional errors can result in assembly issues, leakage, or functional failure. Effective quality control combines both dimensional inspection and functional testing methods.

1. Dimensional Inspection

• Thread Gauges

• • GO/NO-GO gauges are widely used to confirm thread compliance with standards.
  • Ensures that molded threads are within acceptable tolerance ranges for fit and function.

• Coordinate Measuring Machines (CMM)

• • High-precision measurement of pitch diameter, lead, and thread depth.
  • Often used in automotive, aerospace, and medical applications where compliance with ISO or ANSI standards is critical.

• Optical and Vision Systems

• • Non-contact inspection for micro-threads or delicate components.
  • Allows automated inline inspection during high-volume production.

2. Functional Testing

• Torque Testing

• • Measures the required torque for thread engagement and disengagement.
  • Confirms assembly ease and durability under real-use conditions.

• Pull-Out Strength Testing

• • Evaluates the resistance of the threaded connection against axial force.
  • Important for load-bearing or pressurized applications (e.g., automotive connectors).

• Leakage and Pressure Testing

• • Ensures sealing performance in threaded closures for fluid or gas applications.
  • Common in packaging, automotive, and medical device industries.

3. Process Monitoring and Statistical Control

• Statistical Process Control (SPC)
  • Tracks thread dimensions and torque values across production batches.
  • Identifies process drift early to prevent defective parts.
• Mold and Machine Maintenance Records
  • Worn unscrewing cores, collapsible cores, or ejector systems can cause dimensional errors.
  • Scheduled maintenance ensures consistent thread quality over long production runs.

X. Conclusion



Plastic molded threads produced through injection molding have become an essential feature in countless products across industries, from packaging and medical devices to automotive and consumer goods. Their ability to provide reliable fastening, secure closures, and functional integration—while maintaining cost efficiency—makes them indispensable in modern manufacturing.

By understanding the types of molded threads, design principles, tooling requirements, and potential challenges, manufacturers and product developers can maximize both performance and production efficiency. Choosing the right material, thread geometry, and mold design strategy ensures that molded threads meet strength, durability, and usability expectations.

With continuous advancements in mold design and processing techniques, the production of high-precision, high-volume threaded plastic components will only become more reliable and versatile. For companies seeking to combine functionality with scalability, injection molding remains the most powerful solution for manufacturing threaded products at industrial levels.

Ready to bring your design to life with precision and speed? Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction



Threaded plastic parts are widely used across industries such as packaging, automotive, medical devices, and consumer goods. From bottle caps and dispensing closures to syringe fittings and automotive connectors, these components often rely on precise screw threads for assembly and functionality.

However, molding screw threads in plastic presents a unique challenge. Unlike simple shapes that can be ejected directly with standard ejector pins, threaded parts cannot be removed straight from the mold without damage. The thread geometry locks the part onto the mold core, making conventional ejection methods impractical.

To solve this problem, injection molds often incorporate core pulling mechanisms, especially screw thread core pulling systems. These mechanisms allow the threaded core to rotate or withdraw in a controlled manner during mold opening, releasing the plastic part smoothly without deforming or damaging the threads. This makes screw thread core pulling structures a critical design feature in molds that produce threaded plastic components, enabling high-volume, high-precision, and repeatable manufacturing.



II. Why Core Pull May Be Used in Injection Molding



In many injection molding projects, a simple mold design with straight-pull action is sufficient. However, when parts contain complex geometries such as undercuts, deep cavities, or internal/external screw threads, standard ejection cannot release the molded piece without damage. This is where core pull mechanisms become essential.

For threaded plastic parts, core pulling is specifically applied to overcome the locking effect of threads around the mold core. Without a withdrawal or rotation system, the molded part would remain stuck, resulting in part defects, tool damage, or manual demolding—all of which are inefficient and costly.

The use of core pull in injection molding provides several key benefits:

1. Release of complex features: Enables molding of screw threads, undercuts, and deep recesses that would otherwise trap the part.
2. Preservation of part quality: Prevents deformation, stripping, or tearing of threads during ejection.
3. Efficiency in production: Automates the demolding process, reducing cycle time and minimizing manual handling.
4. Extended mold life: Reduces mechanical stress on the mold, protecting both tooling and components.

In short, core pulling transforms complex designs—particularly threaded parts—from difficult-to-manufacture concepts into high-volume, repeatable production components.

III. Principle of Screw Thread Core Pulling Mechanism



The screw thread core pulling mechanism is designed to form internal or external threads directly within the injection mold, eliminating the need for secondary machining. Its working principle lies in synchronizing the rotational or linear withdrawal of the threaded core with the ejection of the molded part.

1. Thread Formation: During injection, molten plastic fills around the threaded core, replicating the thread shape.
2. Thread Release: After solidification, the core must be rotated or translated out of the molded part so that the part can be ejected without damaging the threads.
3. Mechanism Control: This action is typically achieved through hydraulic cylinders, electric motors, or mechanical cams, depending on the complexity of the mold and production requirements.

This principle ensures accurate, repeatable thread geometry while reducing labor-intensive post-processing.

IV. Types of Core Pull Mechanisms in Injection Molding



Core pulling is not limited to thread applications—it is a broader mold design technique used for undercuts, side features, and complex geometries. The main types include:   Hydraulic Core Pulls
Widely used in medium to large molds, hydraulic cylinders provide high force and precise control, making them ideal for complex undercuts and threaded cores.

1. Mechanical Core Pulls (Cam or Angle Pin)
   Relying on the opening stroke of the mold, cam-driven or angle-pin core pulls are compact and cost-effective. They are commonly used for smaller undercuts but are less flexible than hydraulic systems.
2. Electric Core Pulls
   Controlled by servomotors, electric core pulls enable precise positioning and speed adjustment. They are suitable for high-precision parts and cleanroom applications where hydraulic oil cannot be used.
3. Manual Core Pulls
   Used in low-volume production or prototype molds, manual systems require operator intervention to retract or insert the cores, offering the lowest cost but limited efficiency.

V. Advantages and Limitations of Core Pulling Mechanisms



Screw thread core pulling is a specialized technique within injection molding that allows the production of threaded plastic parts with high accuracy and efficiency. Like any method, it has both advantages and limitations that must be considered during mold design and manufacturing planning.

1. Advantages

• High Dimensional Accuracy
  Ensures precise thread geometry, critical for functional assemblies requiring tight fits with screws, caps, or connectors.
• Consistency in Mass Production
  Once the mold is optimized, threaded features can be reproduced consistently across thousands or millions of parts without variation.
• Design Flexibility
  Makes it possible to incorporate internal and external threads directly into molded components, eliminating the need for secondary machining.
• Reduced Post-Processing
  By molding the threads in place, manufacturers avoid tapping, milling, or other secondary operations, saving time and costs.
• Durability of Threads
  The process creates stronger and cleaner threads compared to those formed by unscrewing inserts or post-machining, particularly in thermoplastics.

2. Limitations

• Increased Mold Complexity
  Core pull mechanisms involve additional moving parts (sliding cores, unscrewing devices, or hydraulic cylinders), which complicates mold design and increases initial investment.
• Higher Tooling Costs
  Precision engineering and durable materials are required to withstand repeated mechanical motion, making these molds more expensive to build.
• Maintenance Requirements
  Moving parts are subject to wear and tear, requiring regular maintenance to ensure reliability and prevent downtime.
• Cycle Time Impact
  Core pulling adds extra steps (rotation or withdrawal), potentially lengthening the cycle time compared to simpler molds.
• Part Design Limitations
  Extremely fine or deep threads may still pose challenges and sometimes require alternative methods such as inserts or secondary machining.

VI. Structural Design of Screw Thread Core Pulling Systems



The structural design of a screw thread core pulling system is one of the most critical stages in injection mold engineering, as it directly determines the accuracy, durability, and reliability of the molding process. Unlike simple core pulls, threaded core pulls require precise synchronization between rotation and linear movement to ensure that the molded thread can be demolded smoothly without damaging the part or the mold.

Key considerations in structural design include:

1. Synchronization of Movements

• • The screw thread core must simultaneously rotate and withdraw to release the molded part.
  • The design typically integrates a gear, rack, or inclined slide mechanism to achieve coordinated motion.

2. Drive Mechanism

• • Rack-and-pinion systems are common for converting linear motion into rotational movement.
  • Hydraulic or pneumatic cylinders may be applied for larger molds where stronger pulling forces are required.
  • In high-precision applications, servo-driven unscrewing mechanisms can be designed to provide controlled rotation and withdrawal.

3. Support and Guidance

• • Guide rails, bearings, or bushings are necessary to prevent misalignment and ensure smooth unscrewing.
  • Reinforced structural elements must be included to resist high stresses during operation.

4. Space Constraints

• • The mechanism must fit within the mold’s limited space without interfering with cooling channels, ejectors, or other moving parts.
  • Compact structural layouts are often prioritized for efficiency.

5. Durability and Maintenance

• • Threaded cores are subjected to frequent friction and wear; therefore, hardened steel materials, surface treatments, and lubrication systems should be applied.
  • Modular design facilitates easier replacement of core components without disassembling the entire mold.

In practice, the structural design of screw thread core pulling systems requires a balance between mechanical complexity, cost, and production stability. A well-engineered system ensures long mold life, smooth demolding of threaded features, and consistent product quality across large production volumes.

VII. Factors to Consider in Mold Design with Core Pull Mechanisms



Rigorous testing is critical to ensure selected plastics can endure the multifaceted challenges of marine environments. The following test methods are industry standards used during material qualification and product development:

1. UV Accelerated Weathering (ASTM G154, ISO 4892-3)
   These tests simulate long-term exposure to solar radiation using fluorescent UV lamps, combined with cyclic condensation or water spray to replicate dew and rain. They help evaluate changes in mechanical properties, color fastness, surface chalking, and cracking over time. UV stabilizers in plastics are validated based on performance in these accelerated conditions.
2. Salt Spray (Fog) Testing (ASTM B117, ISO 9227)
   This method exposes samples to a continuous salt fog environment to simulate corrosive marine atmospheres. While polymers don’t corrode like metals, salt spray testing reveals surface degradation, erosion, and loss of protective coatings or additives. It also helps identify moisture ingress pathways in composite or multi-material assemblies.
3. Water Absorption Testing (ASTM D570)
   Moisture uptake can lead to swelling, dimensional instability, and hydrolytic degradation. This test immerses plastic specimens in water for specified durations and temperatures to quantify water absorption levels. Low water absorption materials like HDPE and ASA maintain better mechanical stability in marine conditions.
4. Mechanical Testing under Marine Conditions

• Impact Resistance (ASTM D256, Izod or Charpy): Assesses toughness, especially critical for parts subject to wave or debris impact.
• Fatigue Testing (ASTM D7791): Evaluates material endurance under cyclic loading, simulating repetitive stresses from waves and handling.
• Flexural Strength and Modulus (ASTM D790): Ensures parts maintain rigidity and resist deformation in fluctuating loads and temperatures.

5. Field Exposure Trials
   Ultimately, accelerated lab tests are complemented by long-term field trials in representative marine locations. Real-world data on weathering, biofouling, mechanical wear, and user feedback provide the most reliable validation.
6. Chemical Resistance Testing
   Testing against common marine chemicals such as oils, fuels, cleaning agents, and biological secretions ensures that the material maintains integrity and does not degrade prematurely.

Employing a combination of these methods during the design phase significantly reduces the risk of premature failure and costly recalls.

VIII. Common Applications of Screw Thread Core Pulling Mechanisms



Screw thread core pulling mechanisms are widely employed across industries where threaded features are essential for product functionality, assembly, or fastening. Their ability to form internal or external threads directly during the molding process eliminates costly secondary machining, ensuring both precision and efficiency. Some of the most common applications include:

1.Bottle Caps and Closures

• • Widely used in the packaging industry, particularly for beverages, pharmaceuticals, and cosmetics.
  • Screw thread core pulling allows for precise cap threads that ensure secure sealing and easy opening/closing.
  • Multiple variations such as child-resistant closures and tamper-evident caps often rely on thread-forming mechanisms.

2. Medical Devices

• • Syringe components, diagnostic equipment, and inhaler assemblies often require threaded parts for secure and sterile connections.
  • High-precision core pulling mechanisms are essential to meet strict dimensional and regulatory requirements.

3. Automotive Components

• • Parts such as fluid caps, threaded housings, and sensor mounts commonly incorporate molded threads.
  • Core pull technology ensures consistency in high-volume production while minimizing post-machining needs.

4. Consumer Electronics

• • Small enclosures, connectors, and fastening components for phones, laptops, and home appliances.
  • Threaded features allow secure assembly without compromising the slim form factor of modern designs.

5. Industrial Equipment and Connectors

• • Heavy-duty parts such as pipe fittings, hydraulic connectors, and threaded housings often rely on core pulling to achieve robust and functional designs.
  • Molded threads must withstand high mechanical stress and chemical exposure, requiring precise structural design.

6. Household Products

• • Everyday items like food containers, dispensers, and appliance parts often require durable screw threads.
  • Core pull systems provide both functionality and cost efficiency for high-volume production.

IX. Maintenance and Troubleshooting in Injection Molding for Core Pull Mechanisms



The reliable performance of screw thread core pulling mechanisms in injection molding depends on consistent maintenance and timely troubleshooting. Since these systems often involve complex movements under high loads, even minor issues can result in defective parts, mold damage, or production downtime. A structured approach to maintenance and fault diagnosis is therefore essential.

1. Preventive Maintenance Practices

Regular preventive maintenance helps prolong the lifespan of core pull mechanisms and minimizes the likelihood of unexpected failures. Key practices include:

• Lubrication of Moving Parts
  • Apply high-performance lubricants to sliding cores, guide rails, and threaded mechanisms to reduce wear and prevent seizure.
  • Monitor lubricant contamination from resin or cooling water and clean components before re-application.
• Inspection of Wear Surfaces
  • Check screw threads, core surfaces, and keyways for wear or deformation caused by repeated high-load cycles.
  • Replace bushings, bearings, and inserts before reaching excessive wear tolerances.
• Cooling Channel Maintenance
  • Clean cooling circuits around the core pull system to prevent scale buildup or blockage, which can lead to thermal expansion and misalignment.
• Alignment and Calibration
  • Ensure that core pull cylinders and mechanical linkages remain aligned to prevent uneven stress and premature wear.
  • Perform periodic calibration of stroke lengths and end positions.

2. Common Troubleshooting Scenarios

When issues arise, systematic diagnosis allows for quick resolution without compromising mold integrity. Some frequent challenges include:

• Sticking or Jamming of Core Pull
  • Possible Causes: Insufficient lubrication, foreign debris in the sliding path, or misalignment of the core pull cylinder.
  • Solutions: Clean and lubricate, remove obstructions, and verify alignment.
• Incomplete Core Retraction
  • Possible Causes: Hydraulic cylinder malfunction, insufficient stroke length, or thermal expansion of the core.
  • Solutions: Check hydraulic pressure and seals, adjust stroke limiters, and review cooling efficiency.
• Thread Damage on Molded Parts
  • Possible Causes: Excessive friction during unscrewing, incorrect synchronization between ejection and core retraction, or wear of thread-forming elements.
  • Solutions: Reapply lubrication, verify timing sequences, and replace worn cores or thread inserts.
• Hydraulic Leaks or Pneumatic Pressure Loss
  • Possible Causes: Worn seals, damaged hoses, or loose connections.
  • Solutions: Replace seals, tighten fittings, and ensure proper maintenance of hydraulic/pneumatic circuits.
• Excessive Cycle Time
  • Possible Causes: Slow core retraction due to incorrect hydraulic settings, worn mechanisms, or poor cooling.
  • Solutions: Optimize hydraulic valve settings, service the mechanism, and improve thermal management.

3. Best Practices for Reliability

• Scheduled Maintenance Intervals: Establish inspection and servicing schedules based on cycle counts rather than only operating hours.
• Condition Monitoring: Use sensors to monitor hydraulic pressure, core position, and temperature for predictive maintenance.
• Documentation: Record all maintenance and troubleshooting activities to build a knowledge base for future reference.
• Training of Personnel: Ensure operators and technicians are familiar with both the mechanical and hydraulic aspects of core pull systems.

By adopting a proactive approach to maintenance and troubleshooting, manufacturers can achieve stable operation, maintain product quality, and extend the lifespan of both the mold and the core pull mechanism.

X. Conclusion



Screw thread core pulling mechanisms represent a critical advancement in injection mold design, enabling the efficient production of threaded plastic components that would otherwise be difficult or impossible to demold. By integrating mechanical, hydraulic, or motor-driven core pulling systems, manufacturers can achieve high precision, repeatability, and flexibility in part design—ensuring both functional performance and aesthetic quality.

In practice, screw thread core pulling mechanisms are widely applied in industries such as packaging, automotive, consumer products, and medical devices—demonstrating their versatility and importance in modern plastic product manufacturing.

Ready to bring your design to life with precision and speed? Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction



Selecting the right plastic material is critical for any product destined for marine environments. Whether it’s a fishing accessory, a buoyant device, or a component of a seafaring vessel, the material must withstand intense environmental stressors over time. Prolonged exposure to ultraviolet (UV) radiation, constant contact with saltwater, high humidity, and physical handling pose serious challenges for polymers.

In addition to resisting corrosion and weathering, the material must also maintain mechanical strength and be compatible with industrial manufacturing methods such as injection molding or extrusion. This article explores key performance criteria and identifies the best-suited plastic materials for harsh marine applications.



II. Environmental Challenges in Marine Applications



Marine environments are among the harshest for material performance. Understanding these conditions is the first step in effective material selection:

• UV Radiation: Continuous sunlight exposure accelerates degradation in many polymers, leading to brittleness, discoloration, and loss of mechanical strength. UV-resistant polymers or those with stabilizing additives are essential.
• Saltwater Exposure: Salt accelerates corrosion and can attack polymer chains, especially in moisture-absorbing materials. Resistance to hydrolysis and low water absorption are key traits.
• Humidity and Temperature Fluctuations: Materials must maintain dimensional stability despite fluctuating conditions, particularly in tropical or coastal regions.
• Mechanical Stress: Impact, abrasion, and flexural loads from waves, handling, and equipment contact necessitate toughness and resilience.
• Biological and Chemical Exposure: Algae, barnacles, and chemicals like oils or fuels in marine settings can degrade materials if they are not chemically resistant.

Successful material selection balances all of these factors without compromising manufacturability or cost.

III. Key Material Properties to Consider



To thrive in marine environments, a plastic material should demonstrate the following core attributes:

• UV Resistance: Look for polymers with inherently stable backbones (like ASA) or those with effective UV stabilizers.
• Saltwater Resistance: Choose materials with low moisture absorption and chemical resistance. Polymers like polypropylene or certain nylons (PA12) perform well here.
• Mechanical Robustness: High impact strength and resistance to cracking, especially under repeated loading or low temperatures, are essential for durability.
• Dimensional Stability: Materials should resist warping or swelling due to water absorption or thermal changes.
• Processability: Injection molding and extrusion are standard for marine product production. The selected material must flow well and have thermal stability during processing.

Understanding these properties allows engineers and designers to make informed choices and tailor solutions to specific product requirements.

Material	UV Resistance	Saltwater Resistance	Impact Strength	Processability
ASA	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
PP-C	⭐⭐ (UV stabilized)	⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐
PA12	⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐
HDPE	⭐⭐ (UV treated)	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
POM	⭐ (UV treated)	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐
TPU/TPE	⭐⭐⭐ (stabilized)	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐
PC+ABS	⭐⭐ (UV stabilized)	⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

IV. Recommended Plastic Materials for Marine Use



1. ASA (Acrylonitrile Styrene Acrylate)
   ASA is one of the most UV-stable thermoplastics available. Its acrylic component offers excellent resistance to sunlight, color fading, and weathering. With good impact resistance and low water absorption, ASA is widely used for outdoor equipment, automotive trims, and marine housings. Materials like KIBILAC® PW-957 are specifically formulated for high-gloss and marine applications.

• Pros: Outstanding UV resistance, stable mechanical performance, excellent surface finish
• Cons: Moderate heat resistance, lower chemical resistance compared to high-performance polymers

2. Polypropylene Copolymers (PP-C)
   PP-C is valued for its lightweight nature and chemical resistance, including to saltwater and marine chemicals. When UV-stabilized, it performs well in marine applications like battery casings, floats, and containers.

• Pros: Chemically inert, low density, economical
• Cons: Poor UV resistance unless stabilized, lower impact strength at low temperatures

3. Polyamide 6/12 (Nylon)
   Certain nylon grades, especially PA12, absorb less moisture and retain better dimensional stability in marine environments. Glass-filled variants offer increased strength, but require UV stabilizers for long-term exposure.

• Pros: High strength and fatigue resistance, good wear properties
• Cons: Moisture absorption (PA6, PA66), needs UV protection

4. HDPE and UHMWPE
   These polyethylenes are naturally hydrophobic and highly resistant to saltwater corrosion. UHMWPE is extremely tough and wear-resistant, used for docks, liners, and sliding components.

• Pros: Excellent chemical and moisture resistance, impact durability
• Cons: Limited UV stability unless treated, low rigidity for structural parts

5. POM (Acetal)
   Also known as polyoxymethylene, POM offers high dimensional stability and resistance to water and fuel. However, it requires UV stabilizers for long-term sunlight exposure.

• Pros: Low friction, strong in wet environments, good fatigue resistance
• Cons: UV sensitivity, potential formaldehyde emissions during processing

6. TPE/TPU (Thermoplastic Elastomers/Urethanes)
   Flexible and durable, TPEs and TPUs are ideal for seals, grips, and cushioning components on marine equipment. UV-stabilized grades can perform reliably in outdoor marine use.

• Pros: Elasticity, soft touch, excellent shock absorption
• Cons: Must be carefully selected for UV and chemical resistance

7. PC+ABS (UV-Stabilized Grades)
   This blend combines the toughness of PC and processability of ABS. While not inherently UV-resistant, stabilized grades can offer adequate performance for covered or minimally exposed marine uses.

• Pros: High impact strength, moldability, aesthetic surface
• Cons: Poor saltwater and UV resistance unless specially treated

8. Vinyl Esters & Marine-Grade Composites
   For demanding structural applications like hulls or mounting brackets, marine-grade composites reinforced with fiberglass or carbon fiber deliver unmatched durability.

• Pros: Excellent mechanical and corrosion performance
• Cons: Higher cost, complex manufacturing, not suitable for all part sizes

V. Material Selection Strategy



Choosing the most appropriate plastic for a marine application involves more than selecting a single property. The process must consider the specific use case, budget, manufacturing capabilities, and expected lifecycle of the part. Here are key steps for an effective selection strategy:

1. Define the Application Environment: Determine the level of exposure to UV light, saltwater immersion, mechanical abuse, and temperature cycling. Outdoor surface parts need UV-stable polymers, while submerged components demand high chemical and water resistance.
2. Rank Performance Priorities: Identify the most critical requirements—such as impact strength, rigidity, or dimensional stability—and eliminate materials that fail to meet minimum thresholds.
3. Assess Processing Compatibility: Ensure the material is compatible with the planned manufacturing process, such as injection molding or extrusion. Evaluate melt temperature, shrinkage, and flow characteristics.
4. Evaluate Cost and Availability: Some high-performance polymers offer excellent marine durability but may be cost-prohibitive or have longer lead times. Balance performance with practical supply considerations.
5. Prototype and Test: Always validate your material choice under simulated or real marine conditions. Rapid prototyping, salt spray testing, and UV chamber aging help confirm long-term performance.
6. Consider Regulatory and Environmental Compliance: For certain applications—such as fishing gear or potable water components—verify compliance with environmental or safety standards like RoHS, REACH, or FDA.

A well-structured material selection strategy ensures product reliability and minimizes costly redesigns or failures after deployment.

VI. Field Applications and Case Studies



Real-world applications reveal how marine plastics perform under complex and demanding conditions. Below are two detailed case studies illustrating material selection, design challenges, and results.

Case Study 1: Floating Crab Trap Buoy — UV-Stabilized Polypropylene Copolymer

• Background:
  The client required a buoy for commercial crab traps designed to remain afloat and visible for extended periods in coastal saltwater environments. The buoy must withstand constant wave impact, exposure to direct sunlight, and harsh saline spray, while resisting biofouling that can add weight and reduce buoyancy.
• Challenges:
• Prolonged immersion and salt spray exposure causing chemical and mechanical degradation
• Intense UV radiation leading to polymer chain breakdown and discoloration
• Impact resistance needed due to collisions with rocks and boat hulls
• Manufacturing constraints demanding injection molding for scalable production
• Material Selection:
  UV-stabilized polypropylene copolymer (PP-C) was chosen for its excellent chemical resistance, low density, and cost-effectiveness. UV stabilizers were compounded to extend surface longevity under sunlight. The semi-crystalline nature of PP-C provided good impact resistance at ambient temperatures.
• Design Considerations:
  The buoy incorporated a thick outer shell to absorb impacts and a hollow interior for buoyancy. Surface textures and pigmentation were optimized to reduce biofouling and maintain visibility.
• Outcome:
  The buoy passed accelerated UV and salt spray testing simulating one year of continuous marine exposure. Field trials confirmed its resistance to cracking and fading. The production process achieved high throughput and consistent quality, meeting budget targets.

Case Study 2: Offshore Sensor Casing — Acrylonitrile Styrene Acrylate (ASA)

• Background:
  A manufacturer of offshore monitoring equipment needed a durable protective casing for sensitive electronic sensors mounted on buoys and submerged platforms. The casing must resist prolonged UV exposure, salt fog, temperature swings, and mechanical stresses caused by waves and debris impact.
• Challenges:
• Surface chalking and brittleness due to UV degradation over multi-year deployment
• Salt mist corrosion affecting surface finish and potential ingress points
• Requirement for high dimensional stability to maintain tight seals around sensor interfaces
• Aesthetic demands for glossy, non-fading housing visible above water
• Material Selection:
  ASA was selected because of its superior UV resistance stemming from its acrylic component, which prevents color fading and chalking. Its low water absorption and excellent impact resistance protected internal electronics and ensured long-term dimensional integrity.
• Manufacturing:
  Injection molding enabled complex geometries with tight tolerances. The use of a marine-grade grade such as KIBILAC® PW-957 enhanced surface gloss and weathering resistance. UV stabilizers and anti-oxidants were incorporated during compounding.
• Outcome:
  The casings demonstrated exceptional surface retention and mechanical performance after 18 months of continuous marine exposure, verified by accelerated weathering tests (ASTM G154) and salt spray tests (ASTM B117). Field deployment confirmed robust protection for electronics with minimal maintenance requirements.

VII. Testing and Validation Methods for Marine Plastics



Rigorous testing is critical to ensure selected plastics can endure the multifaceted challenges of marine environments. The following test methods are industry standards used during material qualification and product development:

1. UV Accelerated Weathering (ASTM G154, ISO 4892-3)
   These tests simulate long-term exposure to solar radiation using fluorescent UV lamps, combined with cyclic condensation or water spray to replicate dew and rain. They help evaluate changes in mechanical properties, color fastness, surface chalking, and cracking over time. UV stabilizers in plastics are validated based on performance in these accelerated conditions.
2. Salt Spray (Fog) Testing (ASTM B117, ISO 9227)
   This method exposes samples to a continuous salt fog environment to simulate corrosive marine atmospheres. While polymers don’t corrode like metals, salt spray testing reveals surface degradation, erosion, and loss of protective coatings or additives. It also helps identify moisture ingress pathways in composite or multi-material assemblies.
3. Water Absorption Testing (ASTM D570)
   Moisture uptake can lead to swelling, dimensional instability, and hydrolytic degradation. This test immerses plastic specimens in water for specified durations and temperatures to quantify water absorption levels. Low water absorption materials like HDPE and ASA maintain better mechanical stability in marine conditions.
4. Mechanical Testing under Marine Conditions

• Impact Resistance (ASTM D256, Izod or Charpy): Assesses toughness, especially critical for parts subject to wave or debris impact.
• Fatigue Testing (ASTM D7791): Evaluates material endurance under cyclic loading, simulating repetitive stresses from waves and handling.
• Flexural Strength and Modulus (ASTM D790): Ensures parts maintain rigidity and resist deformation in fluctuating loads and temperatures.

5. Field Exposure Trials
   Ultimately, accelerated lab tests are complemented by long-term field trials in representative marine locations. Real-world data on weathering, biofouling, mechanical wear, and user feedback provide the most reliable validation.
6. Chemical Resistance Testing
   Testing against common marine chemicals such as oils, fuels, cleaning agents, and biological secretions ensures that the material maintains integrity and does not degrade prematurely.

Employing a combination of these methods during the design phase significantly reduces the risk of premature failure and costly recalls.

VIII. Surface Finishing and Protective Coatings



Surface treatment technologies play a pivotal role in enhancing marine plastic durability, aesthetics, and functionality:

1. Inherent UV Stabilization
   UV absorbers and hindered amine light stabilizers (HALS) are compounded into polymers to intercept damaging UV rays and neutralize free radicals. These additives dramatically slow down photo-oxidative degradation, preserving color and mechanical strength.
2. Pigmentation and Masterbatches
   Marine plastics often use specialized pigments that resist fading, chalking, and cracking. Darker and opaque colors typically perform better outdoors, but tailored formulations (e.g., KIBILAC® PW-957 in white or bright colors) enable high-gloss, color-stable finishes.
3. Hydrophobic and Anti-Fouling Coatings
   Marine biofouling — accumulation of algae, barnacles, and microorganisms — accelerates surface wear and increases maintenance. Applying hydrophobic coatings or biocide-free fouling release coatings reduces organism adhesion and water uptake, preserving material performance and lowering cleaning frequency.
4. Surface Texturing and Patterning
   Micro-texturing can improve grip for handles or reduce wet surface glare. Additionally, surface topographies engineered to discourage fouling and sediment buildup improve long-term usability.
5. Paints and Sealants
   For complex assemblies or multi-material interfaces, protective paints and sealants provide additional barriers against moisture ingress and chemical attack. Marine-grade polyurethane or epoxy paints are common, but compatibility with the base plastic must be confirmed to avoid delamination.
6. Plasma and Corona Treatments
   Pre-treatment technologies improve surface energy, enabling stronger bonding of paints, adhesives, or coatings, critical in harsh marine conditions.
7. Maintenance of Treated Surfaces
   Even with advanced coatings, regular inspection and cleaning protocols extend service life. Understanding coating wear characteristics guides maintenance scheduling.

In summary, surface finishing is not merely cosmetic but an essential part of marine plastic engineering, optimizing longevity, safety, and performance.

IX. Design and Manufacturing Considerations for Marine Plastic Components



For marine applications, material selection is only one part of ensuring performance. Proper design and manufacturing practices are equally important to achieve durability, efficiency, and cost control in production.

1. Material Processability

• Marine plastics like ASA, PC+ABS, and PP-C are suitable for injection molding, offering stable flow and dimensional control.
• Additives (UV stabilizers, glass fiber) can affect molding behavior—process settings should be adjusted accordingly.
• Hygroscopic materials (e.g., PC blends) require proper pre-drying to avoid defects during molding.

2. Part and Tooling Design

• Uniform wall thickness helps avoid warping or sink marks.
• Ribs, bosses, and fillets improve structural strength and moldability.
• Adequate draft angles, gate placement, and venting are essential for clean ejection and surface finish.

3. Assembly and Integration

• Use corrosion-resistant fasteners or molded inserts for long-term durability.
• Snap-fit designs should consider UV aging and mechanical fatigue over time.
• Multi-material parts (e.g., PC+ABS with TPU overmold) must account for bonding, sealing, and differential expansion.

4. Surface and Aesthetic Considerations

• High-gloss or textured finishes should be matched with appropriate mold surface treatments.
• Color stability under sunlight requires UV-resistant pigments and proper dispersion during compounding.
• Weld lines and cosmetic defects can be minimized with balanced flow and optimized gate design.

5. Efficiency and Lifecycle Cost

• Select materials that balance environmental resistance with ease of processing and consistent cycle times.
• For high-volume production, invest in robust molds and maintain process stability to reduce scrap and rework.
• Design for ease of replacement or repair can extend product life and reduce long-term maintenance costs.

X. Conclusion



Marine applications place exceptional demands on plastic materials, combining mechanical abuse, chemical exposure, and extreme environmental conditions. The ideal material must withstand prolonged UV exposure, resist saltwater degradation, and retain mechanical integrity over time.

Ultimately, the right material choice depends on the specific application scenario, required lifespan, and manufacturing constraints. Early involvement of design engineers, material scientists, and production teams will ensure the selected plastic delivers the performance needed to endure the challenges of the marine environment.

Ready to bring your design to life with precision and speed? Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction



Marine environments are among the harshest for any plastic component. Whether mounted on a boat deck, floating in open water, or submerged for months, these parts must endure relentless exposure to ultraviolet (UV) radiation, saltwater corrosion, mechanical stress, and thermal cycling. Choosing the wrong material or design approach can quickly lead to discoloration, cracking, or even complete failure — especially in long-term applications. ith growing demand for lightweight, corrosion-resistant alternatives to metal, plastics have become indispensable in modern marine products. However, achieving long-term durability and performance isn’t just about picking a strong material — it requires thoughtful coordination between product design, material selection, and injection molding process optimization.

This guide provides a practical roadmap for engineers, designers, and manufacturers aiming to build reliable marine plastic parts. From understanding your application needs and selecting UV- and salt-resistant plastics, to implementing proven injection molding strategies and avoiding common design pitfalls, each section offers hands-on advice rooted in real-world experience. Whether you’re developing a new enclosure for marine electronics, a floatation device, or an overmolded grip for saltwater tools, this article will help you create components that survive — and thrive — in extreme marine environments.



II. Understand Your Marine Project Needs



Before diving into materials or mold design, it’s essential to define the actual operating conditions and functional requirements of your marine plastic component. A clear understanding of these needs forms the foundation for sound product design and successful injection molding outcomes.

1. Define the Environmental Exposure

• Saltwater Contact: Will the part be submerged, splash-exposed, or used in intermittent contact with seawater?
• UV and Outdoor Exposure: Is it installed in direct sunlight, tropical conditions, or high-altitude/high-UV zones?
• Temperature Extremes: Will the product face thermal cycling (day/night exposure), or freezing and thawing in offshore environments?
• Humidity and Ventilation: Enclosed components require special attention to moisture buildup and condensation resistance.

2. Determine Structural and Mechanical Demands

• Impact Loads: Will it be dropped, hit, or dragged — such as by deck tools or fishing gear?
• Static or Dynamic Loads: Should it support weight, absorb shock, or endure vibration?
• Assembly & Fastening: Will it house inserts, gaskets, or electronics that require precision alignment or tight tolerances?

3. Clarify Functional Expectations

• Cosmetic Durability: Should it maintain color, texture, or gloss after long-term UV and salt exposure?
• Sealing & Waterproofing: Does the part need to be IP-rated or resistant to saltwater ingress?
• Floatation or Buoyancy: Does it need to stay afloat and maintain shape over time?
• Branding and Labeling: Will logos, color schemes, or printed labels be exposed to the elements?

4. Consider Manufacturing Volume and Method

• Prototypes vs. Mass Production: Will you begin with 3D printing, vacuum casting, or move directly to injection molding?
• Injection Molding Scale: Is this a low-volume tool, a bridge production run, or a multi-cavity mold for high volume?
• Lifecycle Expectations: Should the component last one season, 5 years, or a decade in outdoor service?

By outlining your project’s environmental and mechanical requirements up front, you reduce the risk of selecting an unsuitable material or overengineering your part. This clarity also helps your design and manufacturing team make more informed decisions throughout the entire development process.

III. Know the Different Types of Marine Plastics



Not all plastics are built to survive in the unforgiving conditions of saltwater environments. UV degradation, chemical attack, and mechanical fatigue can quickly compromise standard plastics. That’s why selecting the right marine-grade plastic is one of the most critical early decisions in both product design and injection molding.

Below are some of the most commonly used plastics in marine applications — each with unique strengths, limitations, and processing considerations:

1. ASA (Acrylonitrile Styrene Acrylate)

• Best for: Outdoor housings, enclosures, exposed covers
• Advantages:
  • Exceptional UV resistance — superior to ABS
  • Maintains color and gloss in sunlight
  • Good dimensional stability
• Considerations:
  • Slightly lower impact strength than PC+ABS
  • Limited resistance to some solvents
• Molding Notes: Requires medium mold temperatures and benefits from polished tool surfaces for aesthetics.

2. PC+ABS (Polycarbonate + ABS blend)

• Best for: Structural parts, casings, brackets
• Advantages:
  • Excellent impact resistance and toughness
  • Good balance between stiffness and processability
  • Available in UV-stabilized grades
• Considerations:
  • Less chemical resistance to seawater than PP or nylon
  • Must be dried before molding
• Molding Notes: Works well in complex tools; requires well-controlled temperature and gating to avoid cosmetic issues.

3. Polypropylene (PP and Glass-Filled PP-C)

• Best for: Buoyancy parts, hinges, non-load-bearing components
• Advantages:
  • Excellent chemical resistance to saltwater
  • Low moisture absorption
  • Lightweight and affordable
• Considerations:
  • Lower UV stability unless stabilized with additives
  • Limited strength unless glass-filled
• Molding Notes: Shrinks more than other materials; benefits from large draft angles and proper cooling design.

4. Nylon (PA6 / PA66 / PA12)

• Best for: Mechanical components, bushings, underwater housings
• Advantages:
  • High mechanical strength
  • Good abrasion and wear resistance
  • PA12 offers lower moisture uptake and better saltwater performance
• Considerations:
  • Standard PA6/PA66 absorb water and can swell
  • Must be dried thoroughly before molding
• Molding Notes: Mold at higher temperatures; glass-filled grades need attention to warpage.

5. HDPE / LDPE (High/Low-Density Polyethylene)

• Best for: Large parts, floatation devices, non-precision components
• Advantages:
  • Very good chemical and saltwater resistance
  • Flexible and impact-resistant
  • Naturally UV-stable grades available
• Considerations:
  • Limited structural strength
  • Not ideal for tight-tolerance components
• Molding Notes: Low processing temperature; prone to sink marks in thick sections.

6. TPU / TPE (Thermoplastic Polyurethane / Elastomers)

• Best for: Overmolded grips, gaskets, flexible couplings
• Advantages:
  • Excellent flexibility and abrasion resistance
  • Saltwater- and UV-resistant grades available
  • Ideal for sealing or comfort features
• Considerations:
  • Not structural — used in combination with rigid substrates
• Molding Notes: Requires precise control of flow and adhesion during overmolding.

7. Specialty Marine-Grade Blends (e.g., KIBILAC® PW-957)

• Best for: Advanced enclosures, premium outdoor assemblies
• Advantages:
  • Designed specifically for marine UV and salt spray resistance
  • Enhanced mechanical properties and surface quality
• Considerations:
  • Higher cost; best suited for high-performance applications
• Molding Notes: Often compatible with standard ASA/PC tooling setups

Each of these materials comes with trade-offs. Understanding their performance profiles and processing behavior will guide your selection and help avoid costly redesigns or early failures.

IV. Product Design Guidelines for Marine Plastic Parts



Even the best marine-grade plastic can fail if the design doesn’t align with environmental demands and manufacturing realities. Successful marine components require a smart balance of geometry, wall thickness, draft angles, and assembly features — all tailored to resist long-term saltwater exposure, UV degradation, and mechanical wear.

Below are the key product design strategies for robust and injection-moldable marine plastic parts:

1. Use Wall Thickness Strategically

• Uniform wall thickness minimizes warpage and sink marks during molding.
• Aim for 1.5–3.5 mm depending on the material type.
• Avoid abrupt transitions — instead, use smooth thickness transitions or ribs to strengthen thin areas.

2. Incorporate Draft Angles for Easy Ejection

• Add 1°–2° draft per side for vertical walls to allow for smooth ejection from the mold.
• For textured surfaces (common in marine grips and enclosures), increase draft to 2°–5° to avoid drag marks.

3. Reinforce with Ribs, Bosses, and Fillets

• Ribs enhance strength without adding weight — keep rib thickness ≤ 60% of the adjoining wall to prevent sink.
• Use fillets on sharp corners to reduce stress concentration and improve flow.
• Bosses for fasteners should be short and well-supported to avoid cracking.

4. Design for UV and Saltwater Defense

• Use raised edges or overhangs to protect labels, logos, or electronic interfaces from direct sun and water.
• Allow for ventilation or drainage holes in sealed housings to prevent condensation buildup.
• Consider enclosed snap-fits instead of external tabs to reduce UV degradation points.

5. Minimize Stress Points and Avoid Sharp Corners

• Use radiused corners (0.5 mm or more) to reduce internal stress buildup — especially important in PC or nylon parts.
• Avoid thin isolated features that can warp or break under impact or thermal cycling.

6. Consider Buoyancy and Mass Distribution

• For floatation devices or buoy-mounted components, balance mass evenly and include internal ribs or foam filling zones.
• Use hollow structures with internal lattice if lightness is critical.

7. Prepare for Post-Molding Requirements

• Add guide features or alignment pegs for multi-part assemblies.
• Design flat pads or clamp zones if additional machining, drilling, or assembly will occur after molding.

A well-optimized part design reduces internal stress, improves UV durability, and ensures your plastic component survives both the molding process and the real-world marine environment it was built for.

V. Injection Molding Considerations for Marine Applications



Injection molding is the most efficient way to produce high-quality, repeatable marine plastic parts — but only if the process is tuned to the demands of both the material and the environmental exposure. From mold design to process parameters, every decision affects durability, consistency, and performance at sea.

Here are the key injection molding factors to consider when producing marine-grade components:

1. Choose the Right Mold Design

• Multi-gate or balanced gating improves flow for large parts or complex geometries.
• Add venting channels to release air and prevent burn marks — especially important for ASA, PC+ABS, or PA materials.
• Use corrosion-resistant mold steels (like H13 or stainless inserts) to reduce rust risk in high-humidity environments.

2. Control Mold and Melt Temperatures

• Ensure material-specific temperature control:
  • ASA: ~240–270 °C
  • PC+ABS: ~250–290 °C
  • Nylon: ~260–300 °C (dried prior to molding)
• Use consistent mold temperature control (typically 60–90 °C) to reduce warpage and improve surface quality.

3. Dry Materials Properly

• Many marine-grade plastics are hygroscopic — they absorb moisture, which can cause splay, voids, or poor bonding.
• Dry PC, nylon, and PC+ABS thoroughly before molding (usually 2–4 hours at 80–110 °C depending on resin).

4. Use Suitable Fillers and Additives

• Add UV stabilizers, antioxidants, and color masterbatches for parts exposed to sunlight.
• For increased rigidity or dimensional stability, use glass-fiber-reinforced resins (e.g., 20% GF PP or PA).
• Select marine-safe colorants and additives that won’t leach or degrade in saltwater.

5. Ensure Smooth Surface Finishes

• Use polished or textured mold surfaces depending on cosmetic and functional needs.
  • High-gloss for consumer-visible surfaces (e.g., ASA housings)
  • Textured for anti-slip or matte finishes (e.g., TPE grips)
• Avoid weld lines and sink marks through proper flow control and consistent mold fill rates.

6. Test for Marine-Specific Conditions

• Perform salt spray testing, UV weathering, and water immersion testing during prototyping.
• Simulate long-term environmental exposure using accelerated aging if possible.

7. Plan for Consistency in Production

• Optimize cycle time without overheating material — prolonged exposure degrades performance.
• Monitor for warping, short shots, or gate blush — common in large outdoor parts.
• Consider automated part removal or water mist cooling for parts with high thermal mass.

Injection molding marine components requires a careful mix of technical process control and real-world foresight. Properly molded parts resist fading, cracking, and failure — even after years of salt, sun, and stress.

VI. Assembly and Post-Molding Integration for Marine plastic Parts



Once marine plastic parts are molded, they often need to be assembled, sealed, or finished before they can be used in real-world applications. In saltwater and UV-exposed environments, improper assembly can compromise the entire system — even if the material and molding were done right. This section outlines key strategies for joining, sealing, labeling, and protecting marine plastic components after molding:

1. Select Proper Fastening and Joining Methods

• Self-tapping screws or thread-forming fasteners work well with PC+ABS, PP, or ASA if boss design is optimized.
• For higher strength or disassembly, use brass or stainless threaded inserts — either molded-in or heat-inserted.
• Ultrasonic welding, laser welding, and adhesive bonding are viable for creating sealed enclosures or joining dissimilar materials.

💡 Tip: Choose corrosion-resistant fasteners (marine-grade stainless steel) to avoid galvanic reactions in humid environments.

2. Design Effective Seals and Gaskets

• Use TPE or silicone gaskets for waterproofing — especially in housings or lids exposed to spray or submersion.
• Incorporate gasket grooves or overmolded sealing zones into the mold to reduce assembly steps.
• Ensure surface flatness and proper clamping force to maintain long-term sealing integrity.

3. Apply Durable Surface Markings or Labels

• Avoid paper or printed stickers that degrade in sun and saltwater.
• Use laser marking, pad printing with marine-grade inks, or molded-in logos for long-term durability.

4. For functional labeling (e.g., indicators or instructions), consider UV-cured digital printing or engraved overlays.
5. Plan for Field Service and Replacement

• Design snap-fit tabs, screws, or modular interfaces to allow users to replace or upgrade components.
• Minimize over-reliance on adhesives or welded joints if regular access or disassembly is needed.

6. Consider Post-Molding Cleaning and Protection

• Clean parts with mild detergent to remove mold release agents before further processing.
• Optional: Apply UV-resistant coatings, hydrophobic surface treatments, or anti-fouling films for added protection.

Well-planned integration after molding helps ensure your marine components not only perform reliably but also meet appearance, serviceability, and user experience goals over their full life cycle.

VII. Common Design and Manufacturing Pitfalls to Avoid



When developing plastic components for marine use, even small oversights in design or processing can lead to premature failure — especially in harsh environments where UV radiation, saltwater corrosion, and mechanical stress are constant. Avoiding these common mistakes is just as important as getting the materials and molding right. Below are the typical pitfalls in design and manufacturing — and how to avoid them:

1. Ignoring UV and Saltwater Exposure in Material Selection

• The problem: Choosing standard indoor-grade ABS, PP, or PA without UV stabilizers leads to fading, embrittlement, or surface cracking.
• The fix: Use UV-stabilized grades, or marine-grade blends like ASA, PC+ABS with UV additives, or PA12 for long-term outdoor use.

2. Overlooking Moisture Absorption of Engineering Plastics

• The problem: Nylon (PA6/PA66) absorbs water, which can affect strength, dimensional stability, and tolerance fit — especially in submerged applications.
• The fix: Use PA12 or moisture-stable blends for parts exposed to water, or design for water absorption tolerance.

3. Poor Wall Thickness Control

• The problem: Inconsistent wall thickness leads to warpage, sink marks, and residual stress in molded parts — which become critical in marine parts exposed to thermal cycling.
• The fix: Maintain uniform wall thickness, use smooth transitions, and reinforce with ribs instead of thick sections.

4. Insufficient Draft Angle

• The problem: Steep vertical walls without draft create ejection problems and surface drag, especially for parts with texture or gloss finish.
• The fix: Always add at least 1°–2° draft on all vertical faces; increase for textured or cosmetic surfaces.

5. Ignoring Corrosion Risks in Mold Tooling and Inserts

• The problem: Standard tool steel corrodes quickly in high-humidity molding shops or when molding hygroscopic plastics with water-based cooling.
• The fix: Use stainless steel inserts, nickel-plated cavities, or corrosion-resistant steels like H13 or S136 for long-term tooling life.

6. Using Incompatible Adhesives or Fasteners

• The problem: Fasteners rust in salty air; adhesives fail under UV or water exposure.
• The fix: Specify marine-grade stainless fasteners and UV/moisture-resistant adhesives compatible with your resin.

7. Neglecting Assembly Tolerances and Fit

• The problem: Marine plastics expand, contract, and flex more than metals — tight fits may crack or deform over time.
• The fix: Design with expansion gaps, flexible snap-fits, or compressible gaskets to accommodate movement.

By recognizing these avoidable pitfalls early, you can streamline development, minimize warranty claims, and extend product lifespan — even under the most punishing marine conditions.

VIII. Testing and Validation of Marine Plastic Components



Even the best material choice and product design require real-world validation before mass production. Marine plastic components face conditions that are difficult to fully predict through simulations alone, so laboratory and field testing play a crucial role in ensuring long-term reliability.

1. Salt Spray and Corrosion Testing

• Purpose: Evaluate resistance to saltwater and saline environments.
• Method: Standard salt fog chambers (ASTM B117 or ISO 9227) expose samples to a continuous salt mist.
• Application: Confirms material integrity, sealing effectiveness, and fastener resistance under prolonged salt exposure.

2. UV Weathering and Outdoor Exposure

• Purpose: Assess long-term resistance to UV-induced discoloration, embrittlement, and surface degradation.
• Method: Accelerated weathering using QUV testers or xenon arc lamps (ASTM G154, ISO 4892).
• Application: Validates the performance of ASA, PC+ABS, or UV-stabilized PP under tropical sun and outdoor use.

3. Mechanical Stress and Impact Testing

• Purpose: Ensure toughness under real handling and operational loads.
• Method: Drop tests, impact resistance (Izod/Charpy), and cyclic fatigue tests in both dry and wet states.
• Application: Confirms that snap-fits, housings, and floaters can withstand repeated knocks, drops, and flexing in marine use.

4. Water Absorption and Immersion Tests

• Purpose: Measure dimensional changes, swelling, and loss of strength due to water absorption.
• Method: Submersion tests at controlled times and temperatures (ASTM D570 for water absorption).
• Application: Critical for hygroscopic plastics like nylon and PC blends, which may expand or lose stiffness over time.

5. Field Trials and Real-Life Deployment

• Purpose: Validate performance in true operating environments.
• Method: Prototypes are deployed on vessels, buoys, or submerged rigs for months of exposure.
• Application: Confirms lab results, uncovers hidden failure modes (biofouling, abrasion, creep under load).

By combining accelerated lab testing with real-world marine trials, manufacturers can build confidence in product reliability, avoid costly recalls, and provide customers with performance data that supports product warranties.

IX. Case Studies: Marine Plastic Components in Action



Real-world applications provide the best proof of how material selection, design decisions, and injection molding processes determine success in marine environments. Below are three representative case studies that highlight different approaches to achieving durability, UV stability, and saltwater resistance in plastic components.

Case Study 1: ASA Housing for Coastal Monitoring Device

• Challenge: A coastal monitoring station required sensor housings that could endure direct sunlight, salt spray, and high humidity over 5+ years without discoloration or cracking.
• Solution: ASA was chosen for its outstanding UV resistance and color stability compared to ABS. The housing was designed with:
  • 2° draft angles to aid mold release,
  • reinforced ribs to maintain rigidity,
  • and integrated sealing grooves for a silicone gasket.
• Manufacturing Notes: Mold tooling was polished to a fine surface finish to reduce porosity and prevent surface degradation. Balanced gating ensured smooth flow around rib features.
• Result: The housings retained gloss and mechanical integrity after accelerated UV and salt spray testing, outperforming initial ABS prototypes.

Case Study 2: PC+ABS Case for Underwater Tracking Device

• Challenge: An underwater tracking system used by marine researchers needed a casing that could withstand repeated immersion, rough handling, and occasional impact from boat decks.
• Solution: A UV-stabilized PC+ABS blend was selected for its impact strength and toughness. The design included:
  • Snap-fit features reinforced with living hinges,
  • overmolded TPE sealing ring to achieve water resistance,
  • and internal ribs to distribute stress.
• Manufacturing Notes: The material was dried thoroughly before molding to avoid voids and brittleness. Higher mold temperatures and controlled cooling were used to ensure dimensional stability and prevent warpage.
• Result: Field trials showed no cracking or water ingress after months of submersion. The part withstood repeated assembly/disassembly cycles without loss of snap-fit strength.

Case Study 3: Glass-Filled Polypropylene Floater for Ocean Buoys

• Challenge: A buoy manufacturer needed a lightweight floater capable of handling constant wave impact and full-time ocean exposure. HDPE prototypes had worked but lacked sufficient stiffness under load.
• Solution: A 20% glass-filled PP-C was selected to provide the necessary stiffness and saltwater resistance, while still being cost-effective. The floater design featured:
  • Hollow interior with internal lattice ribs for weight reduction,
  • rounded fillets to reduce stress concentration,
  • and vent holes to ease molding and prevent vacuum collapse.
• Manufacturing Notes: The mold design incorporated a textured surface for improved grip and reduced glare. Flow analysis ensured even filling despite rib structures.
• Result: The buoy floaters maintained performance over multiple seasons at sea. Mechanical stiffness improved by over 30% compared to HDPE, while weight savings were preserved.

👉 These case studies demonstrate that successful marine plastic products require more than just choosing a “tough” material — they demand a holistic approach where design, material properties, and molding processes work together to achieve long-term reliability.

X. Conclusion



Designing and producing reliable marine plastic components requires a holistic approach that begins with a clear understanding of the project’s environmental and mechanical demands. Material selection is central to success, with options such as ASA, PC+ABS, glass-filled polypropylene, or specialized UV-stabilized blends offering a balance of outdoor durability, saltwater resistance, and mechanical strength.

Equally important is applying sound design practices, including maintaining uniform wall thickness, adding sufficient draft angles, and incorporating ribs, fillets, and sealing features that enhance both manufacturability and durability.

The injection molding process must be carefully controlled, using corrosion-resistant tooling, optimized temperatures, and proper resin handling to achieve consistent quality and long service life. Post-molding considerations, such as corrosion-resistant fasteners, reliable gasket integration, and durable surface markings, ensure that assembled products withstand long-term use in harsh marine conditions.

Beyond design and processing, validation through testing—ranging from salt spray and UV weathering to immersion and mechanical fatigue trials—provides confidence that the part will perform reliably in real-world applications. By aligning design, materials, molding processes, and testing from the earliest stages, manufacturers can deliver marine plastic components that not only survive but excel in demanding ocean environments.

Ready to bring your design to life with precision and speed? Partner with a trusted Injection Molding expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more.

Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs. Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.



I. Introduction



Aluminum is one of the most widely used materials in CNC machining — and for good reason. It’s lightweight, strong, corrosion-resistant, and highly machinable, making it ideal for everything from aerospace components to consumer electronics and medical housings.

But not all aluminum is created equal. With a wide range of aluminum alloys available, each with its own strengths, weaknesses, and ideal applications, selecting the right grade can be the difference between a successful product and costly redesigns. Two of the most recognized alloys in CNC machining — 6061 and 7075 — serve as perfect examples of how varied aluminum performance can be, especially when precision, strength, or surface quality is at stake.

In this article, we’ll guide you through the key aluminum alloys used in CNC machining, how to evaluate their properties, and what factors to consider when choosing the best alloy for your project. Whether you’re prototyping or scaling into production, understanding aluminum alloys is critical to achieving optimal results.



II. Why Aluminum Is Ideal for CNC Machining



Aluminum is a go-to material in the CNC machining world, offering a rare combination of performance, efficiency, and versatility. Its material characteristics are highly compatible with precision machining processes, making it suitable for prototyping, functional components, and mass production.

Here’s why aluminum stands out:

✅ Excellent Machinability

Aluminum cuts quickly and cleanly, reducing tool wear and shortening cycle times. Its chips evacuate easily, and it responds well to high-speed machining, making it one of the most efficient materials for CNC milling and turning.

✅ High Strength-to-Weight Ratio

Aluminum offers impressive mechanical strength without the bulk. Alloys like 7075 can rival steel in tensile strength while weighing significantly less, making them ideal for aerospace and performance-critical components.

✅ Corrosion Resistance

Many aluminum alloys form a natural oxide layer that resists corrosion. This makes aluminum a reliable choice for outdoor or marine applications, especially when paired with surface treatments like anodizing.

✅ Thermal and Electrical Conductivity

Aluminum alloys conduct heat and electricity better than most metals, which is essential for heat sinks, housings, and electronic enclosures. CNC machining allows tight control over thermal-critical dimensions in these parts.

✅ Good Surface Finish Options

Aluminum machines to a clean, bright finish. It can be easily anodized, painted, polished, or chemically treated to improve appearance, wear resistance, or performance.

✅ Recyclability and Sustainability

Aluminum is 100% recyclable without degradation. This supports sustainability initiatives while also helping companies reduce material costs in large production runs.

III. The Most Common Aluminum Alloys in CNC Machining



Aluminum alloys vary widely in strength, corrosion resistance, and machinability. Selecting the right grade depends on your part’s function, structural demands, and finish requirements. Below is a comparative overview of the most commonly used aluminum alloys in CNC machining:

Alloy	Strength	Corrosion Resistance	Machinability	Heat Treatable	Typical Applications
2007	High	Fair	Excellent	Yes	Automotive parts, precision fasteners, mechanical components
2024	High	Low	Fair	Yes	Aircraft structures, fatigue-loaded components
5052	Medium	Excellent	Fair	No	Marine hardware, fuel tanks, enclosures
5083	High	Excellent	Poor	No	Shipbuilding, structural panels, cryogenic tanks
5754	Medium	Excellent	Good	No	Automotive parts, food processing equipment, welded assemblies
6060	Medium	Good	Good	Yes	Architectural components, piping, lightweight structures
6061	Medium	Good	Excellent	Yes	General-purpose parts, enclosures, jigs, brackets
6063	Medium-Low	Good	Good	Yes	Extruded parts, frames, window profiles
6082	Medium-High	Good	Good	Yes	Structural components, transportation equipment
7075	Very High	Fair	Good	Yes	Aerospace fittings, performance parts, high-stress parts



Special Highlights:

• 2007 is a free-machining alloy with very high strength and excellent surface finish, ideal for intricate turned parts.
• 2024 offers great fatigue resistance, but requires protective coatings for corrosion-sensitive applications.
• 5052, 5083, and 5754 are non-heat-treatable, corrosion-resistant alloys — excellent choices for marine, chemical, or food-contact environments.
• 6060, 6061, 6063, and 6082 are part of the 6xxx series, offering a good mix of strength, corrosion resistance, and machinability — often selected for structural and general-purpose parts.
• 7075 delivers exceptional strength-to-weight ratio, making it ideal for aerospace and high-performance engineering.

IV. Key Selection Criteria for Aluminum Alloys in CNC Machining



Choosing the right aluminum alloy for your CNC machining project involves balancing performance, cost, and application-specific requirements. Below are the most important criteria to guide material selection:

🧩 1. Mechanical Strength

• When strength is critical, such as in structural components or aerospace applications, 7075, 2024, or 5083 are top choices.
• For general-purpose applications where moderate strength is acceptable, 6061, 6082, and 5754 are more than sufficient.

🌊 2. Corrosion Resistance

• Alloys like 5052, 5083, and 5754 provide excellent corrosion resistance, ideal for marine, chemical, or food-grade environments.
• 7075 and 2024 offer less corrosion resistance and typically require protective finishes such as anodizing or painting.

⚙️ 3. Machinability

• 2007 and 6061 are among the best for CNC machining, delivering smooth surface finishes and reduced tool wear.
• Alloys like 5083 and 2024 are harder to machine and may require specialized tools or slower feed rates.

🔥 4. Heat Treatability

• If post-machining heat treatment is required to enhance mechanical properties, focus on heat-treatable alloys like 6061, 6082, 2024, and 7075.
• Alloys such as 5052 and 5754 are non-heat-treatable and depend solely on cold working for strength.

🎯 5. Weldability

• Alloys such as 5052, 5083, 5754, and 6061 are highly weldable.
• 2024 and 7075 are not suitable for welding due to cracking risk and poor joint strength.

💰 6. Cost and Availability

• 6061 and 5052 are widely available and cost-effective, making them go-to options for prototyping and mass production.
• 7075 and 2007 are more expensive but justified for high-performance needs.

🎨 7. Surface Finish Requirements

• Alloys in the 6xxx series (6060, 6061, 6063) offer excellent surface finishes and are ideal for anodizing.
• 2007 provides an outstanding surface finish directly off the machine, useful for tight-tolerance and cosmetic parts.

V. Surface Finish and Anodizing Behavior by Alloy



Surface finishing is a critical step in CNC aluminum part production, especially when aesthetics, corrosion resistance, or wear protection are important. Among the many finishing options available—such as polishing, brushing, bead blasting, or powder coating—anodizing is by far the most popular for aluminum alloys. However, not all aluminum alloys respond the same way to anodizing, and selecting the right alloy can significantly affect the final surface quality.

🔹 Anodizing Basics

Anodizing is an electrochemical process that converts the metal surface into a durable, corrosion-resistant oxide layer. This oxide layer can be clear or dyed in various colors. The quality of this finish depends heavily on the alloy’s composition—particularly the amount of copper, silicon, and zinc.

🔹 Alloy Behavior in Anodizing

Alloy	Anodizing Response	Color Quality	Notes
6061	Excellent	Clear, uniform	Ideal for both decorative and hard anodizing.
6063	Excellent	Bright, smooth	Often used for architectural finishes.
6082	Good	Acceptable	Slightly coarser than 6061.
5083	Moderate	Dull grey	High magnesium content reduces visual quality.
5754	Moderate	Grainy, dull	Best for corrosion resistance, less ideal for aesthetics.
7075	Poor to Moderate	Blotchy, dark	High zinc content causes uneven color and pitting.
2007	Poor	Very dark	High copper content makes it reactive and less suitable for anodizing.

🔹 Choosing the Right Alloy for Anodizing

• Best for Decorative Finishes: 6061, 6063.
• Best for Marine or Corrosive Environments: 5083, 5754 (despite less aesthetic anodizing).
• Avoid for Cosmetic Anodizing: 7075, 2007 unless hard anodizing is required for functional wear resistance.

🔹 Additional Finishing Tips

• Pre-treatment matters: Polishing or bead blasting before anodizing can enhance or smooth the surface appearance.
• Color matching: Even good alloys can produce slight variations in color when dyed, so batch consistency matters.
• Hard anodizing: Alloys like 7075 and 2007 are better suited to Type III hard anodizing for wear protection rather than aesthetics.

VI. Machining Challenges and Best Practices by Alloy



CNC machining performance varies significantly across aluminum alloys due to differences in hardness, chip formation, thermal conductivity, and alloying elements like silicon, copper, and zinc. Understanding the unique behaviors of each alloy can help optimize tool life, surface finish, and part accuracy—especially in high-precision applications.

🔹 Key Machinability Factors

• Hardness: Harder alloys require more robust tooling and slower feeds/speeds.
• Chip Formation: Alloys with poor chip breakability may cause chip re-cutting and tool wear.
• Thermal Conductivity: High conductivity helps with heat dissipation but may soften tools quickly.
• Abrasiveness: Alloys with high silicon content are abrasive and reduce tool life.

🔹 Alloy-Specific Machining Notes

Alloy	Machinability	Challenges	Best Practices
6061	Excellent	Minimal	Use standard carbide tools, dry or mist cooling.
6063	Good	Slightly gummy	Use sharp tools; reduce built-up edge with high RPMs.
6082	Good	Stronger than 6061	Requires more rigid setups and higher torque.
5083	Fair	Gummy and work-hardens	Use aggressive cuts; minimize tool rubbing.
5754	Fair	Similar to 5083	Sharp cutters, frequent tool changes recommended.
7075	Very Good	Risk of surface tearing	Optimal for precision cuts with coolant.
2007	Excellent	Short tool life from abrasiveness	Use coated carbide tools, control heat buildup.

VII. Cost Factors and Supply Chain Availability



When selecting the right aluminum alloy for CNC machining, cost and availability are just as critical as performance. The overall price of a machined part is influenced not only by the base material cost but also by machining time, scrap rates, tool wear, and lead times. Let’s examine these aspects by alloy to help you make informed, cost-effective decisions.

🔹 Breakdown of Key Cost Drivers

• Raw Material Cost: Influenced by alloy composition, global aluminum pricing, and supplier markup.
• Machinability Impact: Poorer machinability leads to longer machining times, higher tool consumption, and more frequent maintenance.
• Scrap & Yield: Alloys prone to distortion or poor anodizing results can reduce yield and increase overall part cost.
• Post-Processing Compatibility: Alloys that require additional steps (e.g., polishing, heat treatment, anodizing correction) incur additional labor and cost.

🔹 Alloy-Specific Cost and Supply Insights

Alloy	Relative Material Cost	Availability	Cost Notes
6061	Low to Moderate	Widely available worldwide	Very cost-effective; standard for many industries.
6063	Low	Common for extrusions	Low cost but limited to structural or aesthetic use.
6082	Moderate	Good in EU/Asia, less in US	Slightly higher cost due to strength and availability.
5083	Moderate to High	Readily available	Higher cost due to marine-grade corrosion resistance.
5754	Moderate	Good availability in Europe	Preferred for forming and corrosion applications.
7075	High	Widely available in aerospace-grade	Excellent performance, but expensive and sensitive to anodizing waste.
2007	Moderate	Moderate availability	Lower-cost alternative to 7075, but tooling costs are higher.

🔹 Supply Chain Considerations

• Global Sourcing: Alloys like 6061, 7075, and 5083 are available globally, while 5754 and 6082 are more region-specific.
• Stock Shapes: 6061 and 7075 are commonly stocked in round bars, plates, and blocks, allowing for quick procurement and low scrap.
• Extrusion Compatibility: 6063 and 6060 are often only available as extrusions, which limits their use in solid block CNC machining.

🔹 Optimization Tips

• For general prototyping or cost-sensitive projects, 6061 is usually the most economical.
• For premium strength with weight savings, 7075 is worth the higher cost.
• When corrosion resistance and formability are critical, 5083 or 5754 offer long-term value despite higher machining effort.

VIII. Alloy-Specific Applications and Use Cases



Understanding how each aluminum alloy aligns with real-world applications can help you select the right material for both performance and cost-efficiency. Below is a breakdown of common use cases tied to specific aluminum alloys in CNC machining:

🔩 2007 – Precision Parts with High Machinability

• Applications: Fasteners, valve components, pins, bushings, and turned parts.
• Why choose it: Excellent machinability and surface finish make it ideal for high-speed machining and mass production of intricate parts.

✈️ 2024 – Aerospace and Structural Components

• Applications: Aircraft skins, fuselage structures, wing tension members, and automotive parts subject to fatigue.
• Why choose it: High strength and fatigue resistance, especially in aerospace-grade designs; however, requires protective surface treatment due to poor corrosion resistance.

🚢 5052 – Marine and Chemical Equipment

• Applications: Boat hulls, fuel tanks, electrical enclosures, and pressure vessels.
• Why choose it: Outstanding corrosion resistance, excellent formability, and weldability—especially in saltwater or acidic environments.

🌊 5083 – Heavy-Duty Marine and Cryogenic Use

• Applications: Shipbuilding, offshore structures, cryogenic tanks, and industrial pressure vessels.
• Why choose it: High strength, toughness, and exceptional corrosion resistance in extreme environments.

🚗 5754 – Automotive and Welded Assemblies

• Applications: Car bodies, truck trailers, welded frames, and food processing equipment.
• Why choose it: Excellent corrosion resistance and moderate strength; especially suited for applications requiring good formability and welding.

🏗️ 6060 – Architectural and Lightweight Structures

• Applications: Piping, railings, lightweight structural elements, and extrusion profiles.
• Why choose it: Good strength-to-weight ratio, corrosion resistance, and surface finish; often chosen for anodized decorative applications.

🧰 6061 – All-Purpose Engineering and Fixtures

• Applications: Jigs, brackets, enclosures, structural parts, and machinery components.
• Why choose it: Balanced mechanical performance, weldability, and machinability make it a popular “default” alloy for prototypes and production runs alike.

🪟 6063 – Extruded Shapes and Finishing

• Applications: Window frames, doors, decorative trims, and piping systems.
• Why choose it: Excellent finish quality and anodizing response; best used when aesthetics and extrusion compatibility matter.

🚚 6082 – Load-Bearing and Structural Parts

• Applications: Truck bodies, rail components, bridges, and frames.
• Why choose it: High strength and good corrosion resistance; a structural-grade alternative to 6061, especially in Europe.

🚀 7075 – Aerospace and Performance Engineering

• Applications: Aircraft fittings, sports equipment, drones, racing bike frames, and tooling.
• Why choose it: Among the strongest aluminum alloys available; perfect for high-performance, weight-sensitive, and fatigue-critical parts.

IX. Tips for Making the Right Aluminum Alloy Choice



Selecting the optimal aluminum alloy for your CNC machining project can have a significant impact on performance, cost, and manufacturability. Use the following tips to make an informed and strategic choice:

✅ 1. Define the Application First

• Is the part structural, cosmetic, or functional?
• Will it be exposed to harsh environments, mechanical stress, or friction?

👉 Start with the end use—it will narrow down your alloy options based on key properties like strength, corrosion resistance, or appearance.

🛠️ 2. Match Mechanical Properties to Performance Needs

• High-strength demands? Consider 7075, 2024, or 6082.
• General-purpose or moderate-load parts? 6061 or 5754 are often ideal.
• High corrosion environments? Choose 5083, 5052, or 5754.

👉 Always match the alloy’s mechanical profile to the stress, fatigue, and durability required in the final product.

🧪 3. Consider Post-Processing and Surface Finishes

• If anodizing is needed, go with 6060, 6061, or 6063.
• If surface finish quality is critical, 2007 and 6063 provide superior cosmetic appeal.
• For heat-treated parts, ensure the alloy is heat-treatable (e.g., 6061, 6082, 7075).

👉 The alloy’s compatibility with finishing methods should match the product’s appearance or durability goals.

🔩 4. Optimize for Machinability and Cost

• For complex geometries or large-volume runs, use machinable alloys like 6061, 2007, or 6082 to save time and reduce tooling wear.
• Need cost efficiency without sacrificing too much strength? 5052, 5754, and 6061 are affordable and versatile.

👉 Choosing a more machinable and cost-effective alloy can improve production efficiency and lead time.

🔧 5. Don’t Over-Specify

• Avoid selecting a premium alloy (like 7075 or 2024) unless the application absolutely demands it.
• Over-specifying can result in unnecessary machining difficulty, increased costs, or poor weldability.

👉 Strive for fit-for-purpose, not “overbuilt.”

🤝 6. Consult Your CNC Machining Partner

• Experienced CNC service providers can offer alloy recommendations based on your design, tolerances, and volume needs.
• They may also suggest material substitutions to reduce cost or lead time.

👉 Collaboration early in the design phase can lead to better material decisions and project outcomes.

X. Conclusion



Selecting the right aluminum alloy for CNC machining is more than just choosing a material—it’s a strategic decision that influences the part’s performance, appearance, manufacturability, and overall project cost. Alloys like 6061 continue to be the go-to choice for general applications thanks to their excellent balance of strength, machinability, and cost-effectiveness. For high-stress environments, 7075 offers superior mechanical properties and weight savings, albeit with higher cost and certain limitations in anodizing consistency. In contrast, 5083 and 5754 stand out for their corrosion resistance, making them ideal for marine and outdoor applications.

Beyond material properties, understanding how each alloy behaves during surface finishing, especially anodizing, is critical. Alloys such as 6061 and 6082 typically produce clean, consistent finishes, while copper-rich alloys like 7075 and 2007 may result in darker or uneven appearances. Machinability also varies significantly—some alloys are more abrasive or produce poor chip control, which impacts tool wear, surface finish, and production efficiency. Therefore, applying best practices in tooling and feed rate optimization is essential for maintaining quality across different alloys.

Cost and availability complete the picture. While 6061 is globally available and competitively priced, higher-performance alloys like 7075 or marine-grade options such as 5083 often come with longer lead times and increased machining costs. Region-specific availability can also influence supply chain decisions, especially for large-scale production or repeat orders.

Therefore, choosing the right aluminum alloy for CNC machining requires balancing mechanical needs, surface finish expectations, manufacturing ease, and supply economics. A well-informed selection not only ensures optimal part performance but also minimizes waste, lowers total cost, and streamlines your path from design to final production. Working closely with your manufacturing partner to evaluate these factors early in the project will help you make the most out of aluminum’s versatile capabilities.

Ready to bring your design to life with precision and speed? Partner with a trusted CNC machining expert to accelerate your product development. GEMS-MFG is the comprehensive solution provider here for you. As a one-stop custom manufacturer, we provide a wide range of services, including rapid prototyping, mold making, injection molding, CNC machining, die casting, and more. Whether your requirements involve intricate prototypes or precision parts, GEMS-MFG is committed to delivering an efficient and cost-effective solution tailored to your needs.

Contact us today [INFO@GEMS-MFG] to explore our offerings and receive an instant quote. Your manufacturing goals are our priority.
